12V Spectroscopy Laser Methane Gas Detector PPB Level Inspection Equipment

12V Spectroscopy Laser Methane Gas Detector PPB Level Inspection Equipment

Brand Name:	AiLF
Model Number:	A20
MOQ:	1
Price:	$280000
Payment Terms:	L/C,T/T
Supply Ability:	20 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ISO

Detection Gas:

Methane (CH4) Ethane(C2H6)

Measure Principle:

Laser Absorption Spectrum

Power Supply:

12V DC

Power Consumption:

120W

Dimensions:

300 Mm X 300 Mm X 243 Mm

Detection Range:

0 To 10000ppm (Methane)/0 To 1000ppm(Ethane)

Positioning Accuracy:

＜1m

Detection Method:

Laser Absorption Spectroscopy

Data Display:

Digit,Image,Geographic Information Image

Response Time:

1 Second

Operating Temperature:

-20°C To 60°C

Static Detection Limit:

1 Ppb(Methane) 0.5 Ppb(Ethane)

Main Unit Weight:

12 Kg

Packaging Details:

60*40*35cmx2, 22kg

Supply Ability:

20 Units Per Month

Highlight:

Spectroscopy Laser Methane Gas Detector

PPB Level Laser Methane Gas Detector

12V gas leak detection equipment

Product Description

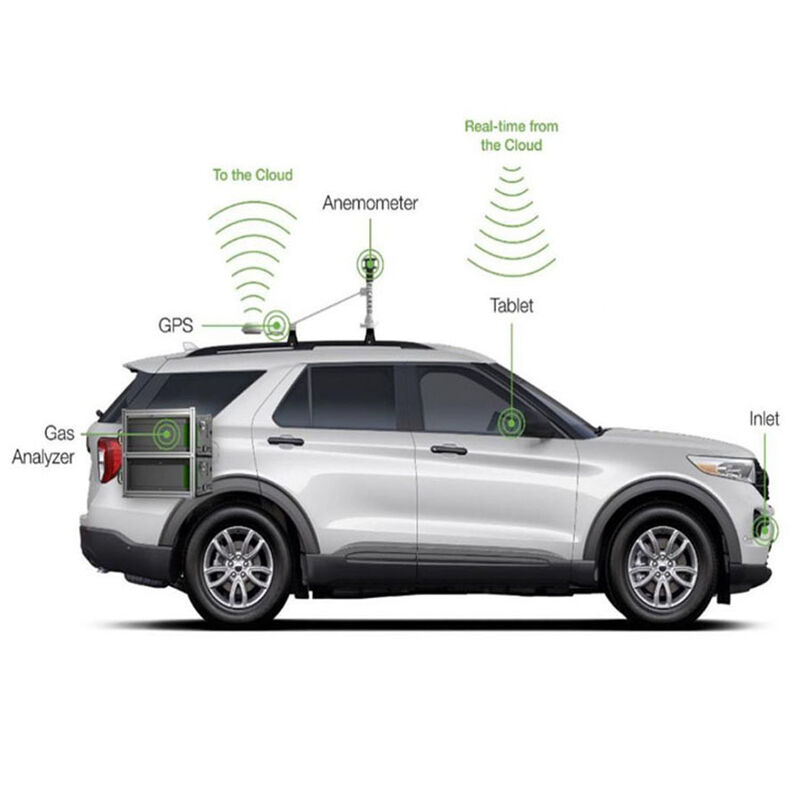

Vehicle Based Laser Methane Leakage Detector System Natural Gas Pipeline Networks PPB Level Inspection

Description:

The A20 vehicle based PPB-level laser natural gas leak inspection system integrates a mid-infrared spectrometer, High precision positioning navigation, Micro meter logical system, AI MAGI imaging, and temperature control into a unified mobile platform mounted on a vehicle.Operating along municipal roads with natural gas pipelines, it conducts rapid mobile patrols while performing dual gas samplings per second. This enables real-time detection of methane and ethane concentration fluctuations in ambient air, allowing for precise identification of natural gas leaks.

A20 With static detection limit low to ppb AiLF's mid-infrared laser absorption spectroscopy technology ensures high sensitivity detection while enabling the maintainability of critical components. With a wide temperature range and low filtration requirements, it has truly achieved laboratory instrument performance with industrial field reliability.

12V Spectroscopy Laser Methane Gas Detector PPB Level Inspection Equipment 0

Characters:

It significantly reduces the false alarm rate with an AI-based false alarm filtering algorithm;
Inspection without stopping, parking for leaks;
Continuous data history allows for evaluating leakage risks;

Automatic route planning to catch distribution efficiently.

High-precision positioning, panoramic imaging, and multi-parameter environmental information integration sensing;

Providing data support for intelligent AI algorithms.
12V Spectroscopy Laser Methane Gas Detector PPB Level Inspection Equipment 1

Techicial Parameters:

Model	A20	Detection Subject	Methane (CH4 I Ethane (C2H6)
Measuring Principle	Mid infrared laser absorption spec roscopy	Concentration Range	0-10,000 ppm(Methane) I 0-1,000ppm(Ethane)
Resolution	l ppb(Methane) I 0.5ppb(Ethane)	Operating Temperature	-20 ~ 60 °C
Response Time	1s	Main Unit Weight	12 kg
Main Unit Dimension	300 x 300 x 243 mm	Power Supply and Power Consumption	12V DC 120W
Positioning accuracy	< lm	Data Display	Digital, Image, Geographic information image

Applications:
Natural Gas Pipeline Inspection:
Commonly used to inspect natural gas pipelines for leaks.
Refinery and Petrochemical Plant Monitoring:
Used to detect leaks in processing plants and storage facilities.
Landfill Gas Monitoring:
Used to detect methane emissions from landfills.
Underground Storage Tank Monitoring:
Can be used to monitor leaks from underground storage tanks.
