| Brand Name: | AiLF |
| Model Number: | G10E |
| MOQ: | 1 |
| Price: | $63000~$70000 |
| Payment Terms: | T/T |
| Supply Ability: | 100 Units Per Month |

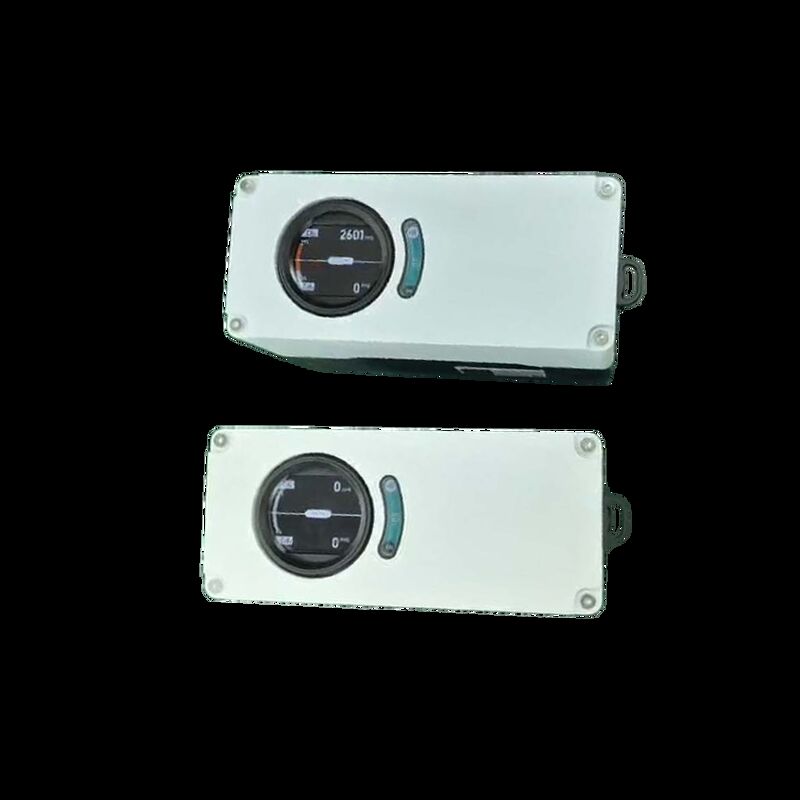

Vehicle Based G20 TDLAS Laser Natural Gas Methane Ethane Leak Detector
Description:
The G20 portable laser natural gas leak detector can detect and separate Ethane content in natural gas samples, even with concentrations of Ethane as low as 0.5 PPB, offering quick and accurate indications in the field.With advanced mid-infrared laser absorption spectroscopy technology perfectly combines high performance with portability in one device.
G20 Portable laser gas detector is a TDLAS-based device that can detect methane and ethane simultaneously. It is mainly used for natural gas leak detection. The main components of natural gas are methane and ethane. Since G20 laser gas detector can detect both methane and ethane at the same time, it can effectively filter out biogas interference (the main component of biogas is methane, and it does not contain ethane).
| Model | G20 | Detection Subject | Ethane(C2H6)| Methane(CH4) |
| Measuring Principle | Laser Absorption Spectrum | Display Mode | Direct value display (ppm) |
| Resolution | 1 ppb(Methane) 0.5 ppb (Ethane) | Explosion-Proof Grade | ATEX Exib IIC T4 Gb |
| Response Time | 1 s | Operating Temperature | -20 ~ 50 ºC |
| Concentration Range | 0~10,000ppm(Methane) 1000ppm(Ethane) | Operating Humidity | < 98%RH, no condensation |
| Enclosure Protection Class | IP66 | Main Unit Dimension | 246 x 98 x 164 mm |
| Power supply and Endurance | Lithium battery >8h | Main Unit Weight | 3 kg |
| Accessories | Strap, hand-held probe | Data Connection | Bluetooth,ADA Software |
