G10E Portable TDLAS Methane and Ethane Natural Gas Leak Detector

Product Description

G10E Portable TDLAS Methane and Ethane Gas Leak Detector

The G10E portable laser gas detector is designed for efficient natural gas leak detection and gas source identification. Utilizing Tunable Diode Laser Absorption Spectroscopy (TDLAS), the G10E measures ethane (C₂H₆) and methane (CH₄), providing concentration readings to help inspection professionals identify potential natural gas leaks and investigate suspicious gas sources.

With an ethane measurement range of 0–10,000 ppm, a resolution of 5 ppm for ethane, and a response time of 0.1 seconds, the G10E supports rapid field inspections and reliable gas concentration analysis. Its compact handheld design, ATEX explosion-protection marking, and IP66-rated enclosure make it suitable for demanding natural gas and industrial inspection environments.

Simultaneous Methane and Ethane Detection

Methane is the primary component of natural gas, while ethane is commonly present in varying proportions. By measuring methane and ethane concentrations, the G10E helps distinguish potential natural gas leaks from other methane sources, including biogas-related sources that typically contain little or no ethane.

This dual-gas detection capability provides additional information for gas source identification, helping inspection teams make more informed decisions during pipeline surveys and leak investigations.

High-Resolution Ethane Measurement and Fast Response

The G10E features an ethane measurement range of 0–10,000 ppm, with a specified ethane resolution of 5 ppm. Its laser-based detection technology and 0.1-second response time support rapid concentration readings during field inspections.

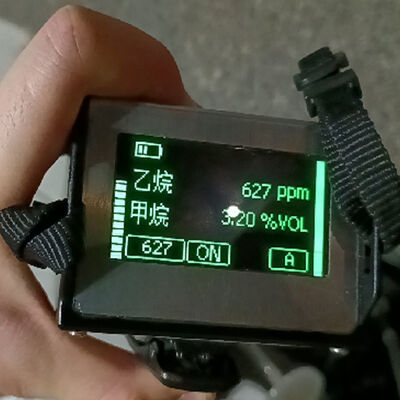

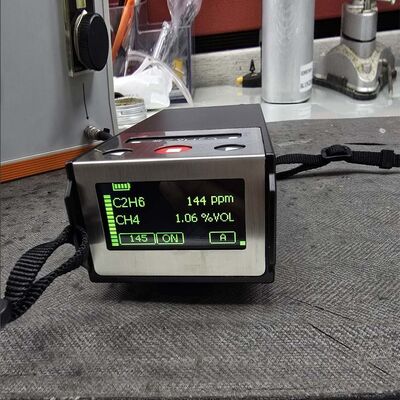

Direct ppm display enables users to review gas concentration values conveniently, helping improve inspection efficiency and identify areas requiring further investigation.

Advanced TDLAS Laser Detection Technology

Based on Tunable Diode Laser Absorption Spectroscopy, the G10E uses laser absorption characteristics for gas measurement. This technology supports selective gas detection and helps distinguish target gas components, making the instrument suitable for natural gas leak inspections where identifying the potential gas source is important.

Portable Design for Flexible Field Inspections

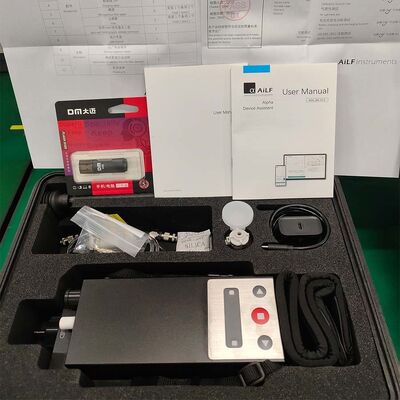

The G10E combines a compact main unit with a handheld probe and carrying strap for convenient transportation and operation. Measuring 208 × 78 × 53 mm and weighing approximately 1.2 kg, the detector is designed for practical use during pipeline inspections, gas distribution network maintenance, and industrial site surveys.

An optional electric-bicycle-mounted bracket is available for compatible inspection setups, providing additional flexibility for mobile inspection operations.

ATEX Explosion Protection and IP66 Enclosure

The G10E is specified with an ATEX explosion-protection marking of Ex ib IIC T4 Gb and an IP66 enclosure protection rating. It is designed for suitable industrial and field environments where explosion protection and resistance to dust and water exposure are important.

The specified operating temperature range of -20°C to 50°C supports use across a variety of working conditions. The instrument should be operated in accordance with its certification, manual, and the safety requirements of the intended site.

Long Battery Life for Field Operations

Powered by a rechargeable lithium battery, the G10E provides more than 10 hours of specified operating endurance. Its portable construction and extended battery operation support inspections across natural gas pipelines, distribution networks, storage facilities, and industrial sites without frequent charging interruptions.

Applications Across Natural Gas and Industrial Sectors

The G10E is suitable for natural gas pipeline inspections, urban gas distribution network maintenance, gas storage facilities, and industrial leak investigations. It can also support methane and ethane monitoring at refineries, chemical plants, and relevant environmental monitoring sites when configured appropriately for the intended application.

By combining methane and ethane measurement, rapid response, portable operation, and certified protection features, the G10E provides a practical solution for natural gas leak detection and gas source identification.

4. Key Features and Benefits

• Methane and Ethane Detection: Measures two important gas components to support natural gas leak identification.

• 5 ppm Ethane Resolution: Provides detailed ethane concentration readings within the specified measurement range.

• 0.1-Second Response Time: Supports rapid gas detection and field inspection workflows.

• TDLAS Laser Technology: Enables selective laser-based gas measurement.

• Direct ppm Display: Makes concentration readings convenient to review during inspections.

• ATEX and IP66 Protection: Ex ib IIC T4 Gb marking and IP66 enclosure protection for suitable demanding environments.

• Portable and Long-Lasting Design: Lightweight handheld construction, more than 10 hours of specified battery endurance, and an optional electric-bicycle-mounted bracket.

5. Typical Applications

• Natural gas transmission and distribution pipeline inspection

• Urban gas network leak detection

• Natural gas storage facilities and infrastructure

• Gas source identification and suspected leak investigation

• Petrochemical plants and refineries

• Industrial methane and ethane monitoring

• Relevant environmental gas monitoring applications
