L20 150m Remote Laser Methane Leak Detector for Natural Gas Pipeline Inspection

Brand Name:	AiLF
Model Number:	L20
MOQ:	1
Price:	$9000$-$10000 per unit
Payment Terms:	T/T
Supply Ability:	200 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ATEX

Detection Technology:

TDLAS Laser Absorption Spectroscopy

Target Gas:

Methane (CH₄)

Detection Distance:

Up To 150 M

Measurement Range:

0–100,000 Ppm·m

Response Time:

0.1 S

Scanning Modes:

High Sensitivity / Building / Pipeline / Auto

Connectivity:

Bluetooth Mobile App With GPS-Linked Records

Packaging Details:

Carton box for shipping 38*33*18cm 3.7kg

Supply Ability:

200 Units Per Month

Highlight:

industrial Remote Methane Leak Detector

Explosion proof Remote Methane Leak Detector

Methane flammable gas detector

Product Description

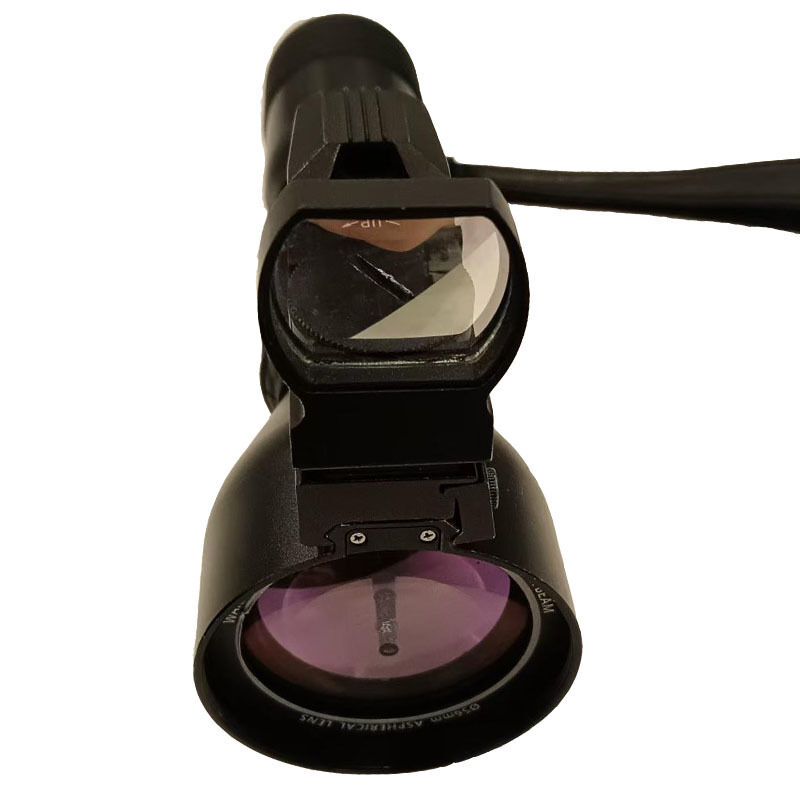

L20 150m Remote Laser Methane Leak Detector

The AiLF Instruments L20 is a handheld remote laser methane detector designed for non-contact natural gas leak inspection. With a detection distance of up to 150 meters and a measurement range of 0–100,000 ppm·m, it helps operators inspect pipelines and other hard-to-reach locations without direct contact with the suspected leak source.

Key Features

TDLAS Technology: Selective laser absorption technology for remote methane detection.
Long-Range Detection: Detects methane from distances of up to 150 meters.
Fast Response: 0.1-second response time supports rapid leak screening.
Multiple Scanning Modes: High Sensitivity, Building, Pipeline and Auto modes.
Visual Targeting: Green dot sight supports accurate targeting in daylight.
Audible and Visual Alarms: Configurable alarm thresholds provide clear alerts.
Bluetooth Connectivity: Connects to the mobile ADA app for GPS-linked readings, inspection notes and photos.

Applications

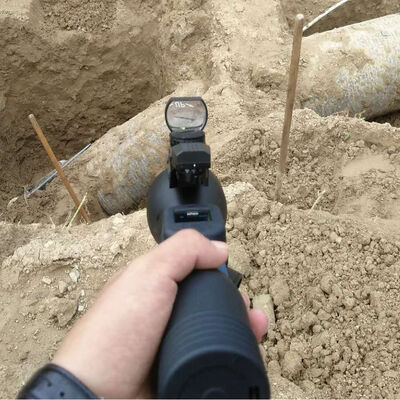

Natural Gas Pipeline Inspection: Remote screening of pipelines, joints, valves and related infrastructure.
Oil and Gas Facilities: Inspection of wellheads, storage facilities and gas processing areas.
Industrial Gas Leak Detection: Non-contact inspection of suspected methane leak locations.
Environmental Monitoring: Methane emission surveys at landfills and natural gas facilities.

Parameter:

Model	L20P I L20	Detection Subject	Methane(CH4)
Measuring Principle	Laser Absorption Spectrum	Detection Laser Class	Class I Eye Safe
Resolution	3 ppm·m	Indication Laser Class	Class IIIR No direct sight or instrument observation
Response Time	0.05 s I 0.05 s I 0. l s	Enclosure Protection Class	IP68
Maximum Detection Distance	200m \| 150m	Explosion-proof Grade	ATEX Exib IIC T4 Gb
Concentration Range	0~100,000 ppm·m	Operatinging Temperature	-20 ~ 50 ºC
Power supply and endurance	Lithium battery > 12h	Operatinging Humidity	< 98%RH, no condensation
Main Unit Weight	0.52 kg I 0.51 kg	Main Unit Dimension	225 x 70 x 80 mm
