Handheld TDLAS Laser Natural Gas Methane Tester Leak Detector Realtime Analysis

Brand Name:	AiLF
Model Number:	G10E
MOQ:	1
Price:	$12000~$15000
Payment Terms:	T/T
Supply Ability:	100 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ATEX

Product Name:

Portable Laser Methane Detector

Target Gas:

Methane (CH4)

Detection Range:

0~100%VOl(Methane)

Battery Life:

Up To 10 Hours Continuous Use

Power Supply:

Rechargeable Lithium-ion Battery

Dimensions:

208mm X 78mm X 53mm

Detection Method:

Laser Absorption Spectrum

Response Time:

< 0.1 Seconds

Alarm Type:

Audible Visual Alarms

Operating Temperature:

-20°C To 50°C

Humidity Range:

0-98% RH (non-condensing)

Display:

LCD Digital Display

Data Logging:

Supports Data Storage And USB Download

Weight:

Approximately 1.1 Kg

Enclosure Protection Class:

IP66

Packaging Details:

38*33*18cm 4.5kg

Supply Ability:

100 Units Per Month

Highlight:

TDLAS methane tester

Realtime methane tester

Realtime handheld methane detector

Product Description

Portable TDLAS Laser Natural Gas Methane Leak Detector Real-Time Analysis Fast Disassembly with Electric Bicycle

Description:

Portable Laser Gas Detector provides better detection performance and long service life that traditional equipment don't have; Combined with mature sampling methods by a trolley or a probe, it makes leak detection rapider and more accurate.

With the built-in gas reference, the G10 portable laser gas detector unit can continuously self-calibrate during operation to ensure accurate detection.

Full-range detection supports readings of concentration in ppm, % LEL and %VOL.

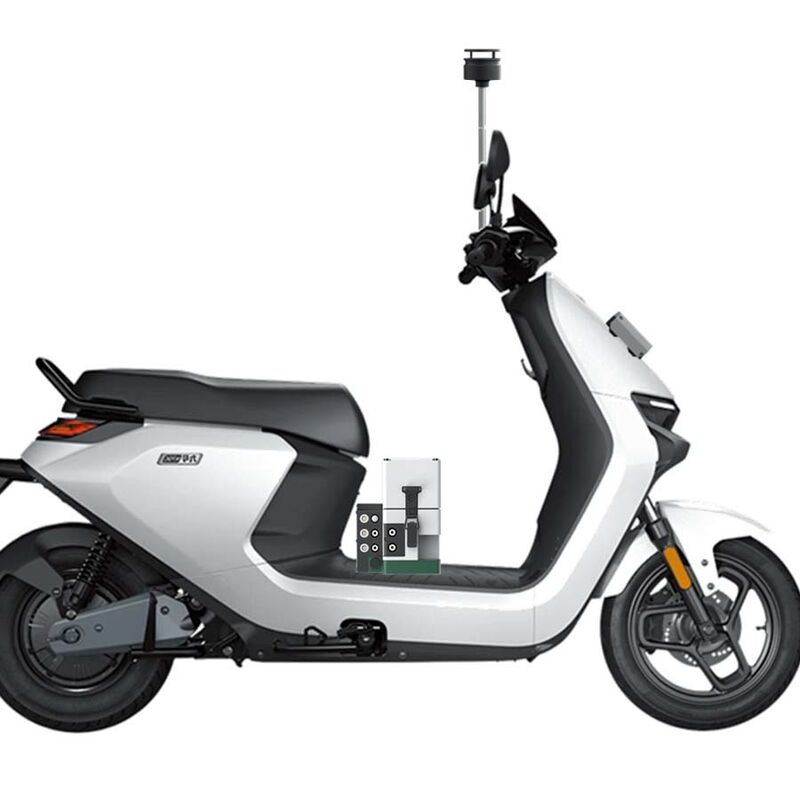

Equipped with the gas pump with a higher flow and efficient filtering system, G10 can be mounted on a trolley or an electric bicycle.

Model	G10	Detection Subject	Methane(CH4)
Measuring Principle	Laser Absorption Spectrum	Display Unit	PPM,%LEL,%VOL
Resolution	0.5 ppm	Explosion-Proof Grade	ATEX Exib IIC T4 Gb
Response Time	0.1 s	Operating Temperature	-20 ~ 50 ºC
Concentration Range	0~100% VOL	Operating Humidity	< 98%RH, no condensation
Enclosure Protection Class	IP66	Main Unit Dimension	208 x 78 x 53 mm
Power supply and Endurance	Lithium battery >10h	Main Unit Weight	1.1 kg
Accessories	Strap, hand-held probe	Optional Accessories	Bell-shaped probe,trolley

Key features and benefits:
High Sensitivity:
TDLAS-based detectors can achieve 0.5ppm-level sensitivity, allowing for the detection of even small leaks.
Specificity:
This TDLAS based laser methane detector can enabling accurate leak identification with fast response time at 0.1s.
Real-time Monitoring:
TDLAS allows for real-time measurements, providing immediate feedback on methane values.
Versatility:
They can be used in various applications, including leak detection in pipelines, industrial facilities, and landfills.

Examples of applications:
Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring ethane emissions from various sources, including landfills and agricultural activities.
