| Brand Name: | AiLF |
| Model Number: | L10M |
| MOQ: | 1 |
| Price: | $4000-$6000 Per Unit |
| Payment Terms: | T/T |
| Supply Ability: | 200 Units/Month |

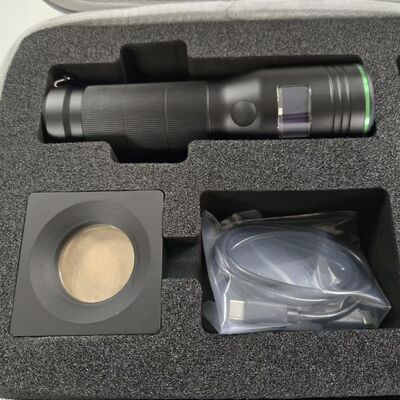

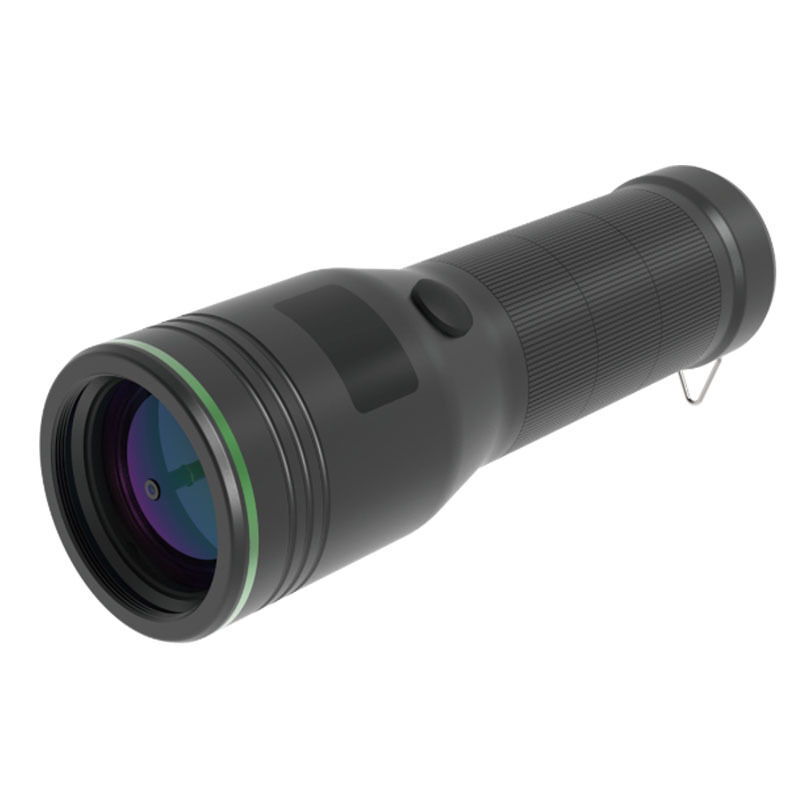

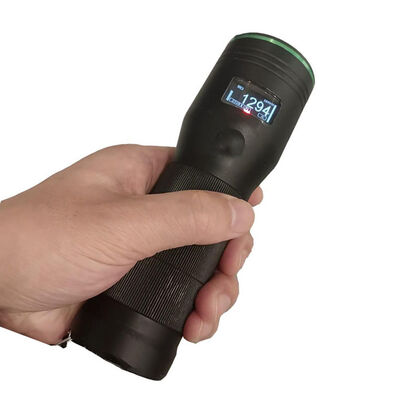

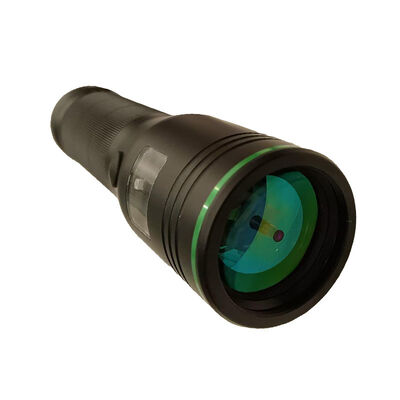

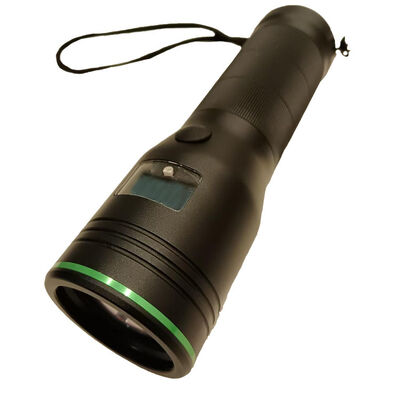

L10M 50m Remote TDLAS Natural Gas Pipeline Networks Laser Methane Leakage Inspection Detector
Description
The L10M remote laser gas detection module is based on laser absorption spectroscopy technology, which detects laser light of specific wavelengths.The concentration of a gas is determined by measuring the amount absorbed after passing through it,and it possesses the following characteristics:
The Remote Laser Methane Leak Detector is a sophisticated piece of kit with remote detection of methane emissions from up to 165 feet away, with a sensitivity to methane of ±5ppm.
Remote detection allows utility services personnel and first responders to quickly scan an area for suspected gas leaks at a safe distance.
Key Features
Methane detection at 165 ft (50 metres)
Bluetooth connection for instant field reporting, using a mobile device
Instrument weight 0.79lbs (360g)
10 hours rechargeable battery life
Suitable for compliance reporting
IP68 enclosure rating
Technical Parameters
|
Model |
L10 | L10M |
Detection Subject |
Methane(CH4) |
|
Measuring Principle |
Laser Absorption Spectrum |
Detection Laser Class |
Class I Eye Safe |
|
Resolution |
5 ppm·m |
Indication Laser Class |
Class IIIR No direct sight or instrument observation |
|
Response Time |
0.1s |
Enclosure Protection Class |
IP68 |
|
Maximum Detection Distance |
100m | 50m |
Explosion-proof Grade |
ATEX Exib IIC T4 Gb |
|
Concentration Range |
0~100,000 ppm·m |
Operating Temperature |
-20 ~ 50 ℃ |
|
Power supply and endurance |
Lithium battery > 10h |
Operating Humidity |
< 98%RH, no condensation |
|
Main Unit Dimension |
0.38kg | 0.36kg |
Main Unit Dimension |
170 x 52 x 52 mm |
Ideal Uses
Natural gas pipeline inspections
Landfill and biogas facility monitoring
Urban utility infrastructure surveys
Emergency response for gas leak detection
Industrial facility safety inspections
