| Brand Name: | AiLF |
| Model Number: | G10E |
| MOQ: | 1 |
| Price: | $16500~$20000 |
| Payment Terms: | T/T |
| Supply Ability: | 100 Units Per Month |

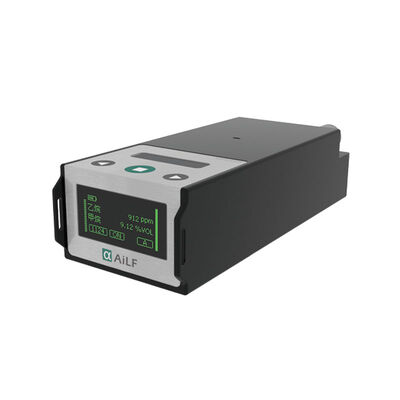

ATEX Certified G10E Real-Time Analysis quick response portable TDLAS Laser Natural Gas Methane&Ethane Leak Detector
Description:
A laser ethane detector utilizes laser technology, specifically Tunable Diode Laser Spectroscopy (TDLS), to detect ethane gas (C2H6). These detectors are used in various applications, including leak detection in natural gas pipelines, monitoring emissions, and breath gas analysis. They offer high sensitivity, often in the parts per billion (ppb) range, and can distinguish between different gas compositions, like natural gas and biogas, by measuring ethane and methane levels simultaneously.
| Model | G10E | Detection Subject | Ethane(C2H6)| Methane(CH4) |
| Measuring Principle | Laser Absorption Spectrum | Display Mode | Direct value display (ppm) |
| Resolution | 5 ppm (Ethane) | Explosion-Proof Grade | ATEX Exib IIC T4 Gb |
| Response Time | 0.1 s | Operating Temperature | -20 ~ 50 ºC |
| Concentration Range | 0~10,000ppm(Ethane) | Operating Humidity | < 98%RH, no condensation |
| Enclosure Protection Class | IP66 | Main Unit Dimension | 208 x 78 x 53 mm |
| Power supply and Endurance | Lithium battery >10h | Main Unit Weight | 1.2 kg |

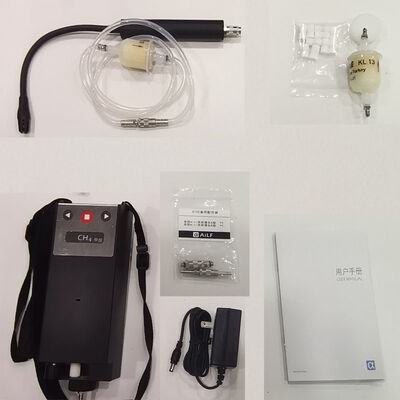

| Accessories | Strap, hand-held probe | Optional Accessories | E-Bicycle-mounted bracket |
