Handheld Pump Type C10F Full Scale PPM LEL% VOL Display Laser TDLAS Methane Leakage Detector

Name: Handheld Pump Type C10F Full Scale PPM LEL% VOL Display Laser TDLAS Methane Leakage Detector
Brand: AiLF(Shandong)Instruments Co., Ltd.
SKU: C10F
Price: 5000 USD
Availability: InStock

Brand Name:	AiLF
Model Number:	C10F
MOQ:	1
Price:	$5000
Payment Terms:	T/T
Supply Ability:	300 Unit per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ATEX

Detection Gas:

Methane (CH4)

Detection Method:

TDLAS

Alarm Type:

Audible And Visual Alarms

Operating Temperature:

-20°C To 50°C

Power Supply:

Rechargeable Lithium-ion Battery

Charging Time:

4 Hours

Detection Range:

0-100%VOL

Battery Life:

10 Hours Continuous Use

Display Unit:

PPM %LEL %VOL

Humidity Range:

0-98% RH (non-condensing)

Response Time:

< 0.2 Seconds

Weight:

Approx. 0.56kg

Dimensions:

225mm X 82mm X 54mm

Packaging Details:

38*33*18CM 3.6kg

Supply Ability:

300 Unit per Month

Product Description

Handheld Pump Type C10F Full Scale PPM LEL% VOL Display Laser TDLAS Methane Leakage Detector

Description:

C10F has good performance of full-range detection, supports readings of concentration in ppm, %LEL and %VOL.

Auto

With the built-in gas reference, C10 can continuously self-calibrate during operation to ensure accurate detection. Laser technology

is superior to the traditional sensor without any failure or getting disabled, it's truly realized self-calibration(calibration free).

APP

Support Bluetooth connection with inspection app AlphaOne

Support access to external or user's information platform

Water and Dust Resistant, Grade IP66

Applicable to explosive environment, Grade EXib IIC T3

Capable of adapting to various working conditions like indoor,wild field,station,pipelines with reliability,durability,safety and stability.

Long endurance, fast charging, and Type C interface working with low temperature resistance battery pack can ensure a-day-long
working even in extremely cold regions.

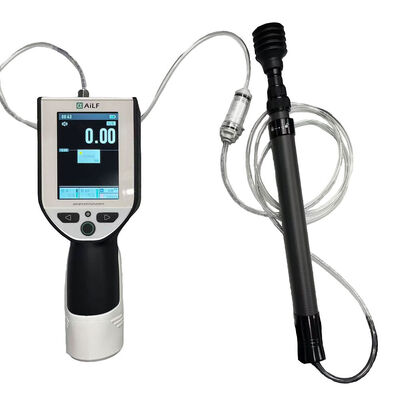

Through the rear EZG gas interface, C10 can be connected with the accessories like gooseneck and sampling probe in a convenient and fast

manner for replacing and checking filter.

Model	C10F	Detection Gas	Methane(Ch4)
Measure Principle	Lase Absorption Spectrum	Display Unit	PPM,%LEL,%VOL
Static Detection Limit	1 PPM	Explosion-Proof Grade	Exib IIC T3 Gb
Response Time	0.2s	Operating Temperature	-20~50ºC
Concentration Range	0~100%VOL	Operating Humidity	<98%RH,No condensation
Enclosure Protection Glass	IP66	Main Unit Dimension	225x82x54mm(excluding probe)
Power supply and endurance	Lithium battery>10h	Main Unit Weight	0.56kg
Accessories	Goosenneck Probe	Optional Accessories	Sampling probe,Portable bag

Application:
Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring methane emissions from various sources, including landfills and agricultural activities.

Handheld Pump Type C10F Full Scale PPM LEL% VOL Display Laser TDLAS Methane Leakage Detector 0

Handheld Pump Type C10F Full Scale PPM LEL% VOL Display Laser TDLAS Methane Leakage Detector 1

Handheld Pump Type C10F Full Scale PPM LEL% VOL Display Laser TDLAS Methane Leakage Detector 2
