Remote Laser TDLAS Methane Detector Leakage Inspection Monitoring System OEM

Remote Laser Methane Leakage Inspection Detector Non Contact Long Distance TDLAS Natural Gas Pipeline Networks

Description:

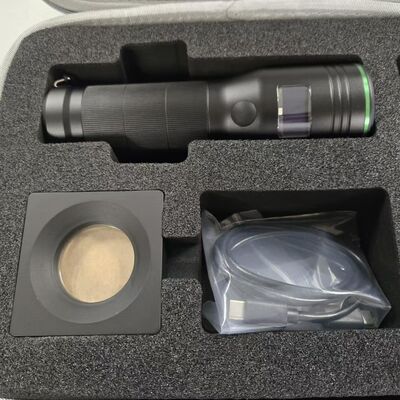

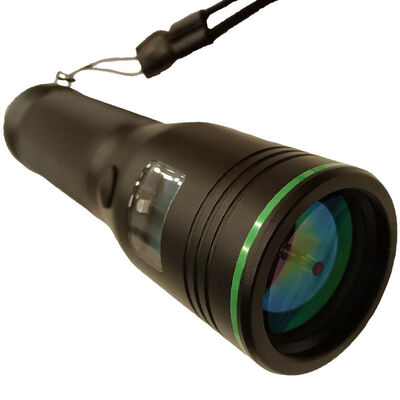

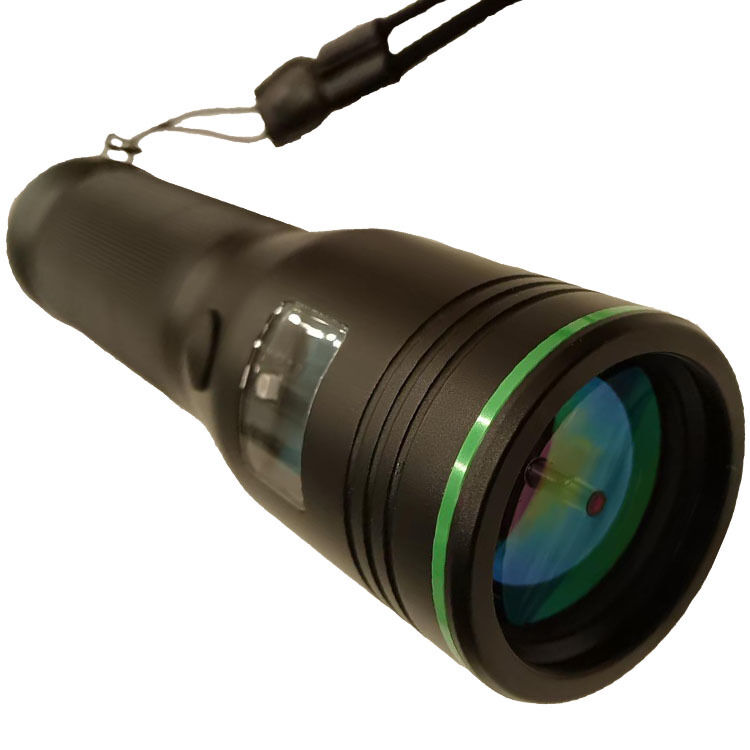

The L10M Remote Laser Methane Leak Detector is a hand-held remote methane leak detector (RMLD).  This laser-based Remote Methane Leak Detector is easy to use, highly sensitive and easily detects at 50 meters (165 feet) away, making it the ultimate tool for natural gas leak inspection of residential buildings and properties, gas leak inspection of natural gas pipelines, and methane leak inspection of gas containers.

The Remote Laser Methane Leak Detector is a sophisticated piece of kit with remote detection of methane emissions from up to 165 feet away, with a sensitivity to methane of ±5ppm•m.

Remote Methane leak detection allows utility services personnel and first responders to quickly scan an area for suspected gas leaks at a safe distance.

HOW IT WORKS:
The laser beam of the Remote laser methane leak detector is transmitted towards the target. As the beam passes through the gas, some of the light is absorbed by the molecules. A sensor then captures the reflected light, and by analyzing how much is absorbed, the system calculates the methane concentration.The results show on the display screen immediately.

Key Features:

Methane detection at 165 ft (50 metres)
Bluetooth connection for instant field reporting, using a mobile device
Instrument weight 0.79lbs (360g)
10 hours rechargeable battery life
Suitable for compliance reporting
IP68 enclosure rating

Technical Parameters

Ideal Uses

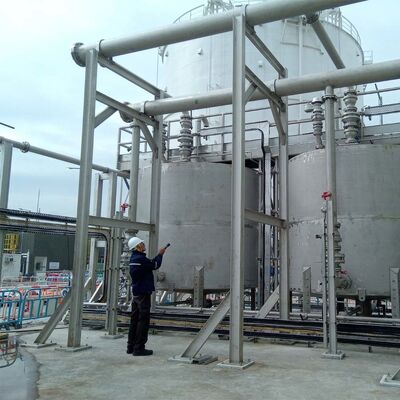

Natural gas pipeline inspections

Landfill and biogas facility monitoring

Urban utility infrastructure surveys

Emergency response for gas leak detection

Industrial facility safety inspections
