Aerial Inspection Remote Methane Leak Detector DJI Drone Gas Detector U10

Aerial Inspection Solution Drone Based U10 Remote Laser Methane Leakage Detection System

Description:

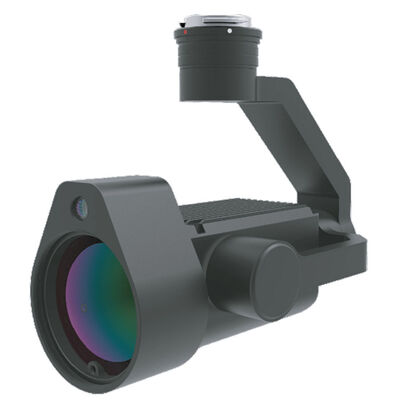

The U10 remote laser methane leak detection system is operated on drones and is mainly used for transmission and gathering pipeline inspections. Based on TDLAS technology, the high-precision UAV methane emission detection system weighs no more than 1kg, making it compact, portable, energy-efficient, and durable for UAV or drones. It provides reliable inspection results for underground as well as for above ground pipelines.

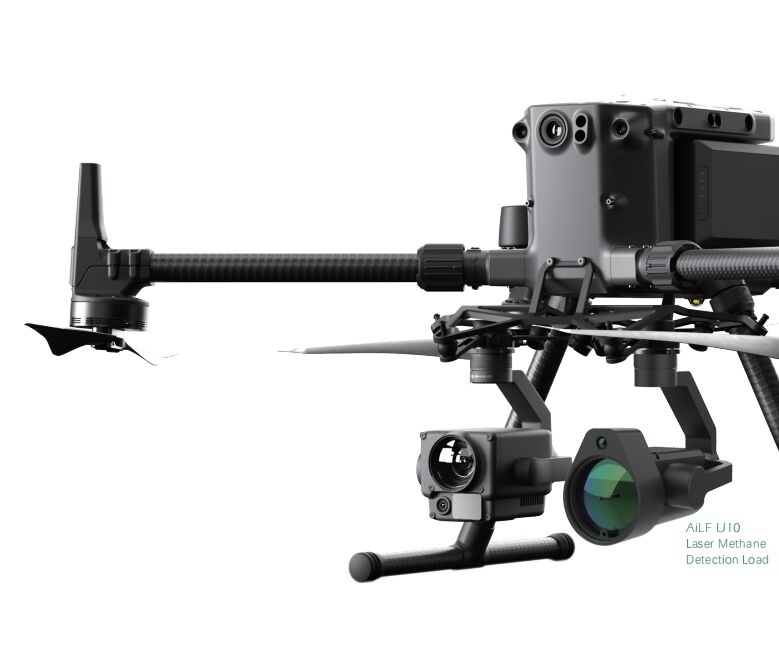

The U10 Remote laser methane leak detector is a light-weight, high-sensitivity gas detector based on Tunable Diode Laser Absorption Spectroscopy (TDLAS), which enables rapid identification of methane from up to 150 m away, or at a concentration as low as 5ppm.m. Equipped with 3-axis stable gimbal, U10 remote laser methane leak detector can automatically resist the interference caused by inevitable vibration. Powered by DJI SkyPort, the U10 can be seamlessly integrated with DJI Matrice 350 RTK platforms.

Specifications:

·Gas Detected: Methane

·Detection Distance: Up to 100 meters

·Detection Limit: 5ppm·m (stationary)

·Response Time: 25 milliseconds

·Integration: DJI SkyPort compatible

·Drone Compatibility: DJI Matrice 300 Series, Matrice 400 RTK

·Technology: Tunable Diode Laser Absorption Spectroscopy (TDLAS)

Technical Parameter:

Key Features:

Exceptional Sensitivity:

With its laser-based detection system, the U10 Methane leak Sensor identifies methane concentrations with unparalleled accuracy, even in low concentrations, ensuring early detection of potential leaks.

Real-Time Data Transmission:

Equipped with advanced connectivity options, the U10 methane sensor provides instant data transmission to operators, enabling swift decision-making and immediate response to detected hazards.

Versatile Application:

Whether it's monitoring vast pipeline networks, inspecting industrial facilities, or conducting environmental research, the U10's adaptability makes it suitable for a wide range of applications, ensuring comprehensive coverage and protection.

Ideal Uses:

Natural gas pipeline inspections

Landfill and biogas facility monitoring

Urban utility infrastructure surveys

Emergency response for gas leak detection

Industrial facility safety inspections
