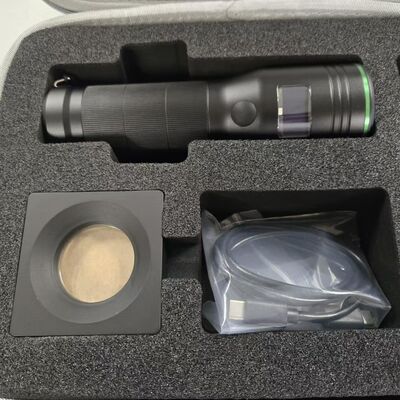

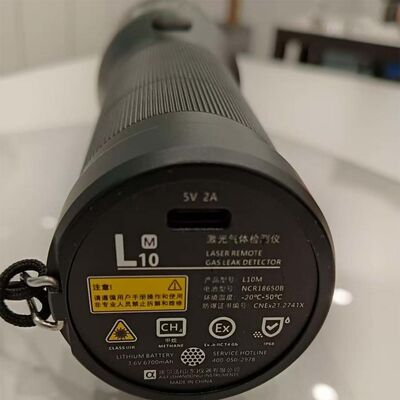

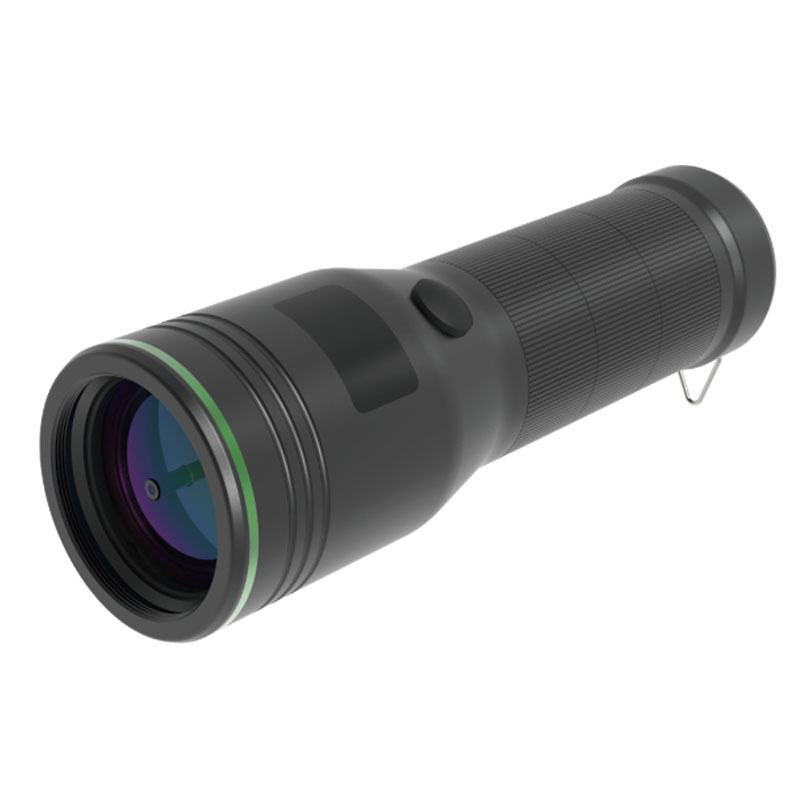

Intrinsically Safe L10M 50m Remote Laser Methane Leak Detector for Pipelines

Product Overview

The AiLF L10M Intrinsically Safe 50m Remote Laser Methane Leak Detector is designed for fast, non-contact methane leak inspection in natural gas pipeline networks and industrial environments. Combining tunable diode laser absorption spectroscopy (TDLAS) with a compact handheld design, the instrument enables operators to detect potential methane leaks from a distance of up to 50 meters without needing to approach the suspected leakage point directly.

The detector emits a laser beam tuned to methane's characteristic absorption wavelength. When the beam passes through a methane gas plume and reflects off a target surface, the returned light is analyzed to identify methane absorption. This laser-based detection method supports efficient inspection of suspected leaks in both aboveground and underground pipeline systems where a suitable optical path is available.

Designed for field inspections, the L10M features Bluetooth connectivity and integration with mobile ADA software. Inspection personnel can record GPS-linked measurement readings, add location notes, and capture photos to document suspected leak points. These digital records help streamline field reporting, support follow-up inspections, and improve the traceability of pipeline maintenance activities.

With its remote detection capability, portable form factor, and digital inspection functions, the L10M provides a practical solution for natural gas utilities, pipeline operators, and industrial safety teams.

Key Features and Benefits

Remote Detection up to 50 Meters

Detect potential methane leaks from a distance of up to 50 meters, helping inspectors examine suspected leakage areas while reducing the need for direct access to hazardous or hard-to-reach locations.

TDLAS-Based Methane Measurement

Uses tunable diode laser absorption spectroscopy to identify methane through its characteristic optical absorption, supporting selective detection of methane gas plumes along the laser path.

Portable Handheld Design

The compact form factor supports on-site inspections, mobile patrols, and routine gas leak surveys across different operating environments.

Bluetooth Connectivity and Mobile Data Management

Connects to mobile ADA software via Bluetooth to support the collection and management of inspection data in the field.

GPS-Linked Inspection Records

Record location-associated readings, notes, and photos to help document suspected leaks, simplify reporting, and support subsequent maintenance activities.

Non-Contact Inspection Method

Enables remote examination of suspected gas leaks without requiring the operator to place the detector directly against a pipeline or suspected leakage point, provided that a suitable laser path and reflective target are available.

Ideal Applications

• Natural Gas Pipeline Inspection: Survey aboveground and accessible inspection points along natural gas transmission and distribution networks.

• Landfill and Biogas Monitoring: Check suitable inspection areas for potential methane emissions.

• Urban Gas Infrastructure Surveys: Support routine inspections of gas distribution facilities and related utility infrastructure.

• Emergency Gas Leak Response: Help responders investigate suspected methane leaks remotely where site conditions and safety procedures permit.

• Industrial Facility Safety Inspections: Assist gas leak surveys at processing facilities, utility installations, and other industrial sites.

A Practical Tool for Efficient Methane Leak Inspection

The AiLF L10M combines remote laser methane detection, portable operation, and digital inspection documentation in one handheld instrument. By integrating optical gas sensing with GPS-linked records and mobile software connectivity, it helps inspection teams conduct more organized methane leak surveys and maintain clearer records of field findings.

Contact AiLF to learn more about the L10M and discuss its suitability for your pipeline inspection and methane monitoring requirements.
