C10F Portable TDLAS Methane Detector with Built-In Pump for Gas Leak Inspection

C10F Portable Laser Methane Leak Detector

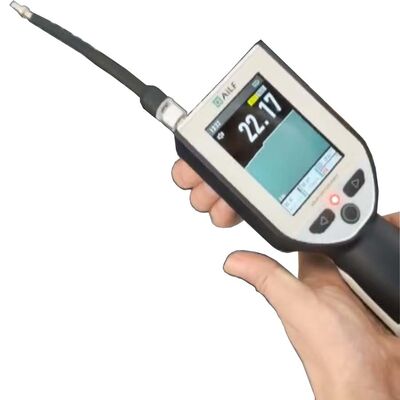

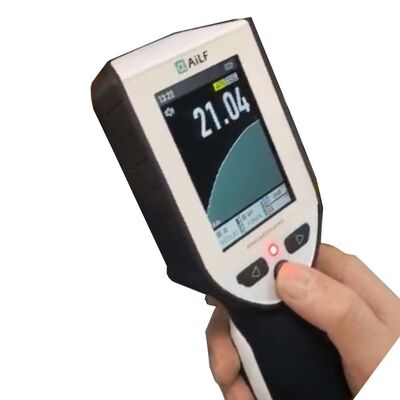

The AiLF Instruments C10F is a portable methane leak detector featuring built-in pump sampling and TDLAS laser technology. Designed for natural gas pipeline inspection and industrial gas leak detection, it provides fast measurements without relying solely on remote, non-contact laser scanning.

Key Features

• Built-In Pump: Supports gas sampling through compatible probes and accessories.

• TDLAS Technology: Enables selective methane detection with a static detection limit of 1 ppm.

• Continuous Self-Calibration: Uses a built-in gas reference to support measurement stability during operation.

• Multiple Measurement Units: Displays methane readings in ppm, %LEL and %VOL, with a concentration range of 0–100% VOL.

• IP66 Protection: Designed for demanding inspection environments.

• Portable Design: Weighs approximately 0.56 kg and supports more than 10 hours of battery operation.

• Smart Connectivity: Bluetooth connection to the AlphaOne inspection app supports digital inspection records.

Applications

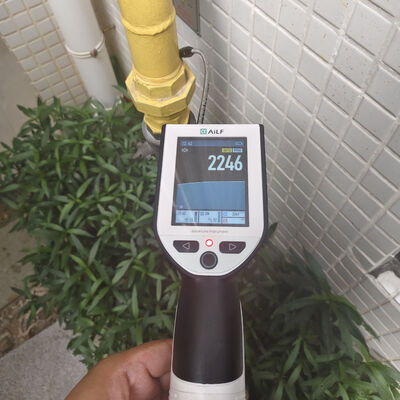

• Natural gas pipeline leak inspection

• Gas distribution networks and underground pipelines

• Oil and gas facilities

• Refineries and industrial plants

• Methane emission monitoring

The C10F combines portable operation, pump-assisted sampling and laser-based methane measurement in one compact inspection instrument.
