| Brand Name: | AiLF |
| Model Number: | C10F |
| MOQ: | 1 |
| Price: | $5000 |
| Payment Terms: | T/T |
| Supply Ability: | 30 Unit per Month |

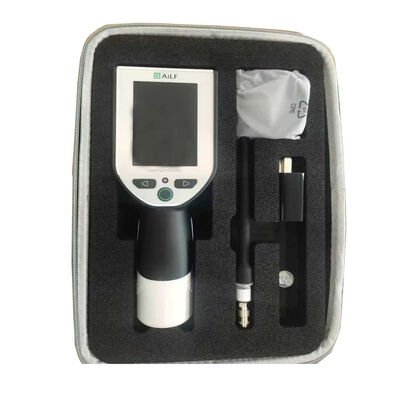

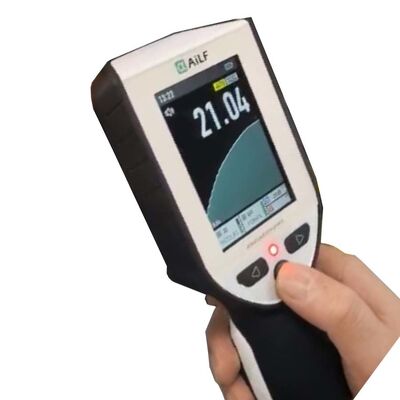

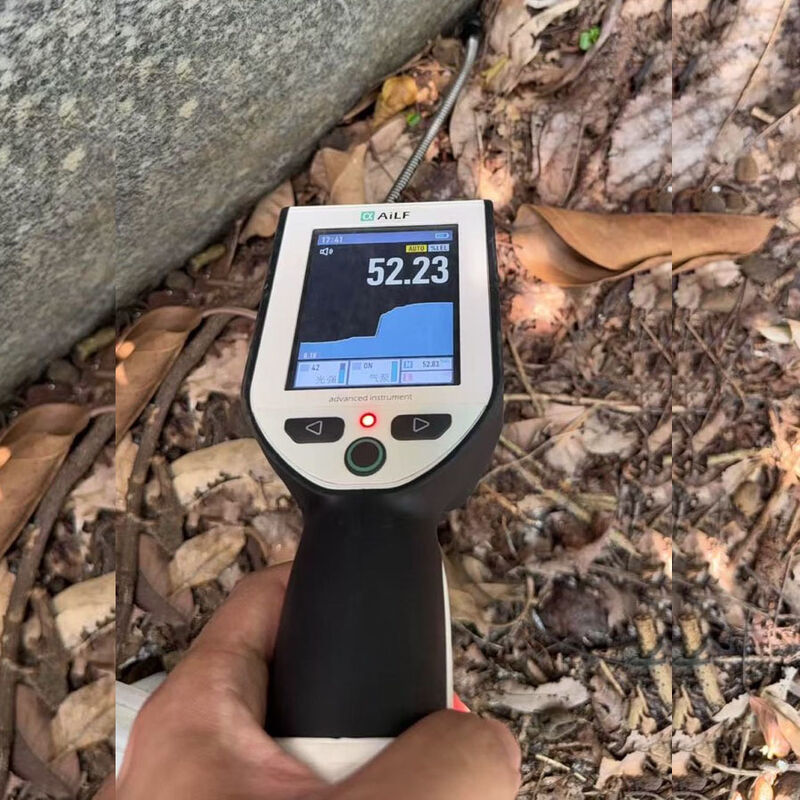

C10F Portable TDLAS Laser Methane Detector for Natural Gas Leak Inspection
The AiLF C10F is a handheld TDLAS laser methane detector designed for fast and accurate natural gas leak inspection. Its integrated pump and laser sensor provide stable methane measurement, while full-range readings in ppm, %LEL, and %VOL support different inspection requirements for above-ground and underground pipelines.
The C10F features a built-in gas reference for continuous self-calibration during operation, helping maintain measurement accuracy without conventional manual calibration. Bluetooth connectivity with the AlphaOne inspection app also supports inspection data management and integration with external information platforms.
With IP66 protection and Exib IIC T3 explosion protection, the C10F is designed for use in pipelines, indoor facilities, stations, and outdoor field environments. A rear gas interface allows quick connection of a gooseneck or sampling probe for flexible field inspection and filter maintenance.
The C10F is suitable for natural gas pipeline leak detection, gas infrastructure inspection, industrial gas monitoring, and methane emission measurement.
| Model | C10F | Detection Gas | Methane(Ch4) |
| Measure Principle | Lase Absorption Spectrum | Display Unit | PPM,%LEL,%VOL |
| Static Detection Limit | 1 PPM | Explosion-Proof Grade |
Exib IIC T3 Gb
|
| Response Time | 0.2s |
Operating Temperature
|
-20~50ºC |
| Concentration Range | 0~100%VOL | Operating Humidity | <98%RH,No condensation |
| Enclosure Protection Glass | IP66 | Main Unit Dimension | 225x82x54mm(excluding probe) |
| Power supply and endurance | Lithium battery>10h | Main Unit Weight | 0.56kg |
|
Accessories
|
Goosenneck Probe | Optional Accessories | Sampling probe,Portable bag |
