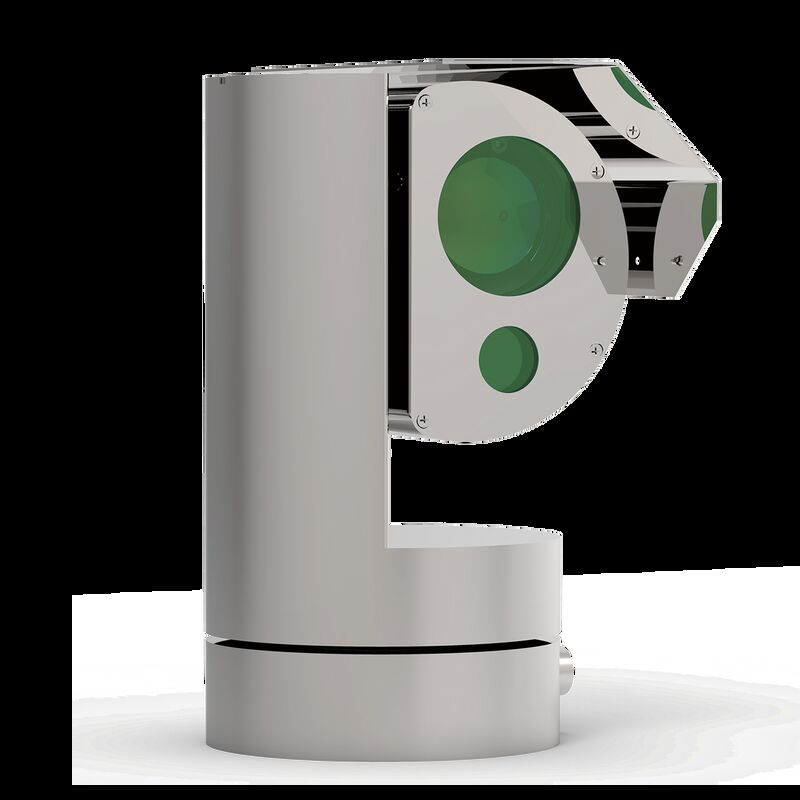

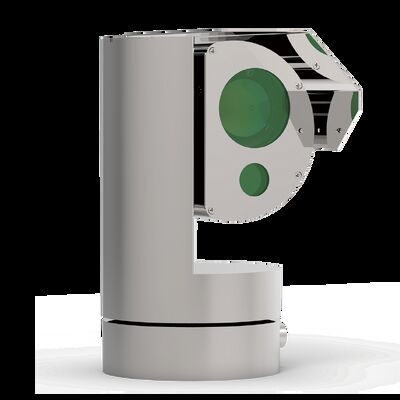

P20 Open Path Continuous Laser Methane Leak Scanning Monitoring

P20 Open Path Pan Tilt Zoom Continuous Laser Methane Natural Gas Pipeline Leak Scanning Monitoring 24/7

Description:

P20 Laser Gas Open Path gas detector is specifically designed for continuous monitoring in hazardous areas.
Based on our advanced TDLAS Technology, the entire instrument is built into compact flameproof enclosures which makes it ideal for zone 1 locations. It can detect up to 150m from a distance.

P20 Open Path laser monitoring system integrates laser detection, leak point determination, recording, inspection route management, and network communication on the pan-tilt, making it a complete monitoring and alarm device. Even if the backend system is offline, the pan-tilt can independently and continuously perform on-site leak monitoring and synchronize breakpoint alarm data when the system is restored.

TDLAS Principle:
The TDLAS Principle also known as Tunable Diode Laser Absorption Spectroscopy operates with exceptional results. The advanced TDLAS technology provides you with unique gas detection capabilities. The internal laser emits a very narrow bandwidth of light.

Methane will absorb this specific wavelength of the emitted light. Other gases present will not cause any reading interference there. The detector will measure the light reduction caused by gas. A high-quality l methane detection system offers unmatched gas specificity. The internal photodiode detects even those very faint light signals.

Advantages:

Continues Monitoring and Alerts – State of the AlphaSupervisor software supplied with each system installed allowing 24/7 monitoring with multiple functionalities tailored to customer requirements

Better Safety – Intrinsically safe and explosive-proof characters, P20 Methane Leak monitoring was designed to operate in harsh environments of the industry; the methane leak monitoring is extremely rugged, robust, and is sealed for severe outdoor industrial conditions.

Better Quantification – Latest TDLAS technology enables you to accurately measure the leak rate on your premises from a safe distance Better Mounting – Pan & Tilt mounting enables options to surveillance multiple areas with one gas leak monitoring.

Better Communication – P20 Methane leak monitoring supports ModBus and OPC configurations

Better Maintenance - For it light weight 5.5kg, making it more easy to maintena compared to the traditional pan tilt gas detection monitoring.

Application:

Natural Gas Leak Detection: Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.

Industrial Monitoring: Detecting leaks in chemical plants, refineries, and other industrial facilities.

Environmental Monitoring: Measuring methane emissions from various sources, including landfills and agricultural activities.
