Handheld Portable C4H8S THT Gas Leakage Detector High Sensitive

Handheld Portable C4H8S THT Gas Leakage Detector High Sensitive

Brand Name:	AiLF
Model Number:	C10F
MOQ:	1
Price:	$5000
Payment Terms:	T/T
Supply Ability:	300 Unit per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ATEX

Detection Gas:

Tetrahydrothiophene (C4H8S)

Detection Method:

Electrochemical

Alarm Type:

Audible And Visual Alarms

Operating Temperature:

-20°C To 50°C

Power Supply:

Rechargeable Lithium-ion Battery

Detection Range:

0~50 Mg/m3

Battery Life:

8 Hours Continuous Use

Display Unit:

Mg/m3

Humidity Range:

15-90% RH (non-condensing)

Response Time:

< 60 Seconds

Weight:

Approx. 0.5kg

Dimensions:

225mm X 82mm X 54mm (excluding Probe)

Optional Accessories:

Flow Regulator, Tube

Packaging Details:

38*33*18CM 3.6kg

Supply Ability:

300 Unit per Month

Highlight:

Handheld THT Gas Detector

C4H8S THT Gas Detector

C4H8S Gas Leakage Detector

Product Description

High Sensitive Handheld Portable THT C4H8S Gas Leakage Detector

Description:

C10P adopts an electrochemical sensor to detect THT(C4h8S). Through built-in temperature, pressure, and bias voltage stabilization,to ensures detection accuracy, Each measurement cycle includes sensor purging and flushing to prevent adsorption.
Parameter correction is performed using additional data of sulfur compound sensors to avoid cross-interference from other sulfur compounds in natural gas.
To address the sensor's long-term drift characteristics, an optional calibration kit is available for fully automated calibration.

APP

Support Bluetooth connection with inspection app AlphaOne

Support access to external or user's information platform

Water and Dust Resistant, Grade IP66

Applicable to explosive environment, Grade EXib IIC T3

Capable of adapting to various working conditions like indoor,wild field,station,pipelines with reliability,durability,safety and stability.

Long endurance, fast charging, and Type C interface working with low temperature resistance battery pack can ensure a-day-long
working even in extremely cold regions.

Through the rear EZG gas interface, C10 can be connected with the accessories like gooseneck and sampling probe in a convenient and fast

manner for replacing and checking filter.

Model	C10P	Detection Gas	Tetrahydrothiophene(C4H8S)
Measure Principle	Electrochemical	Display Unit	mg/m3
Resolution	0.3 mg/m3	Explosion-Proof Grade	Exib IIC T3 Gb
Response Time(T90)	＜60 s	Operating Temperature	-20~50ºC
Concentration Range	0~50 mg/m3	Operating Humidity	15~90%RH,No condensation
Enclosure Protection Glass	IP66	Main Unit Dimension	225x82x54mm(excluding probe)
Power supply and endurance	Lithium battery>8h	Main Unit Weight	0.5 kg
Accessories	Flow Regulator, Tube	Optional Accessories	Calibration Kit

Application:
Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring methane emissions from various sources, including landfills and agricultural activities.

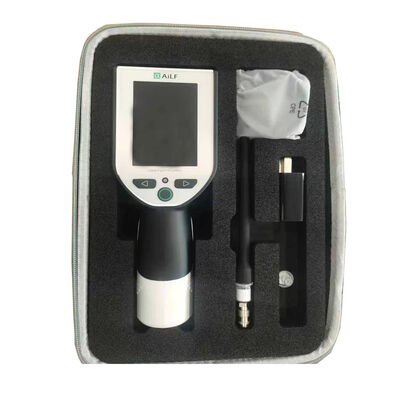

Handheld Portable C4H8S THT Gas Leakage Detector High Sensitive 0

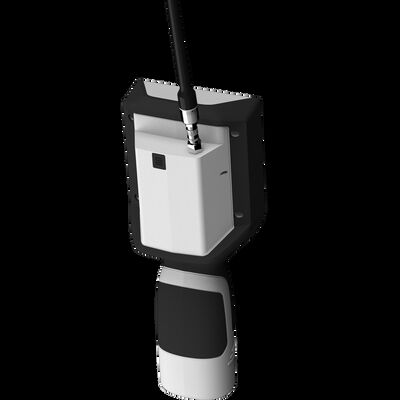

Handheld Portable C4H8S THT Gas Leakage Detector High Sensitive 1

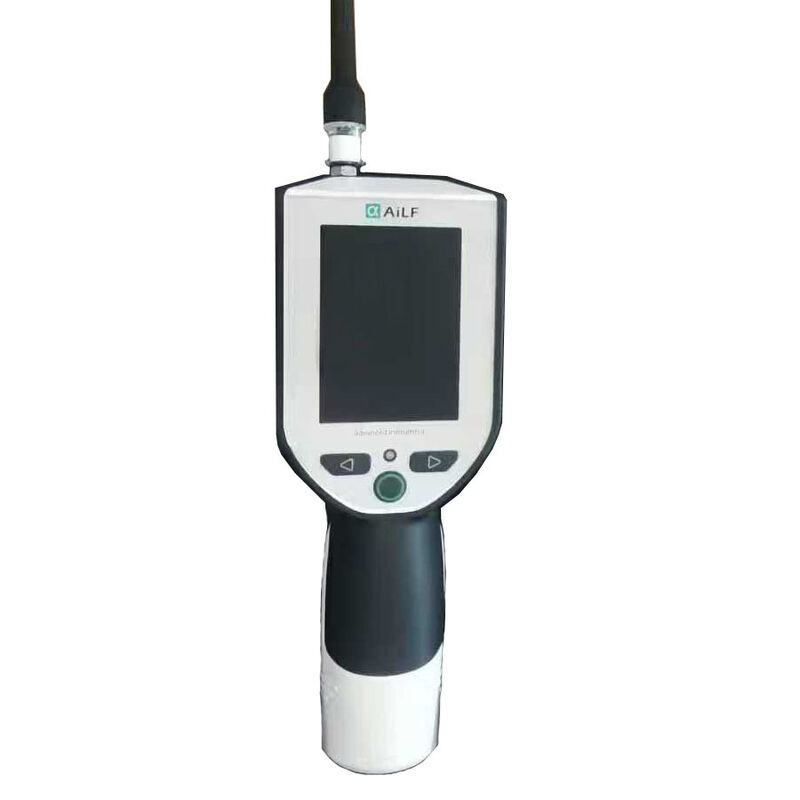

Handheld Portable C4H8S THT Gas Leakage Detector High Sensitive 2
