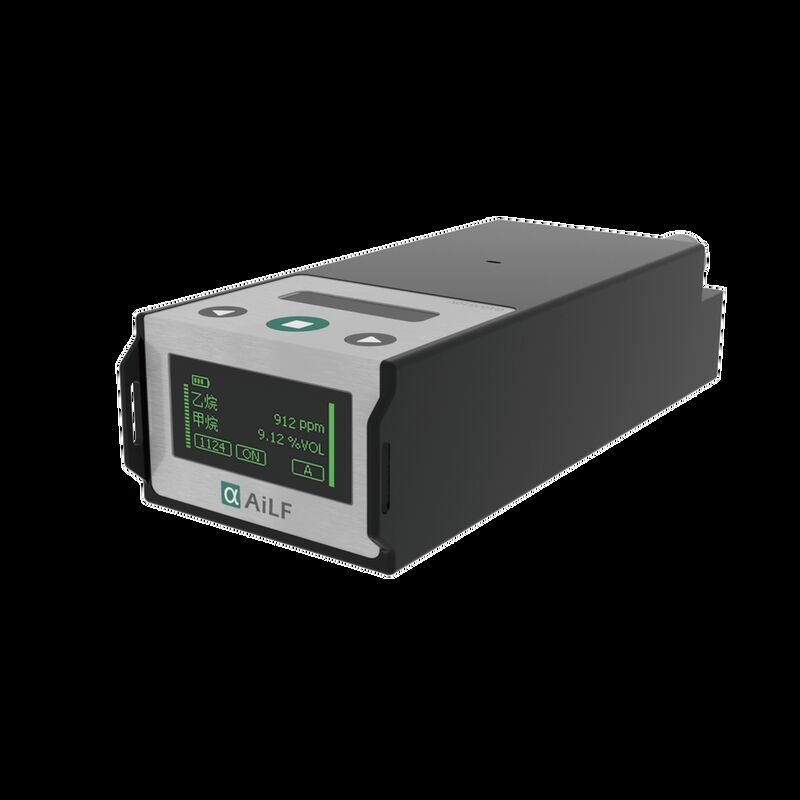

Portable TDLAS Laser C2H6 Ethane Gas Detector Equipment Battery Powered

Brand Name:	AiLF
Model Number:	G10E
MOQ:	1
Price:	$16500~$20000
Payment Terms:	T/T
Supply Ability:	100 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ATEX

Product Name:

Portable Laser Methane&Ethane Detector

Target Gas:

Methane (CH4) Ethane(C2H6)

Detection Range:

0-10000ppm(Ethane) 0~100%VOl(Methane)

Battery Life:

Up To 10 Hours Continuous Use

Power Supply:

Rechargeable Lithium-ion Battery

Dimensions:

208mm X 78mm X 53mm

Detection Method:

Laser Absorption Spectrum

Response Time:

< 0.1 Seconds

Alarm Type:

Audible & Visual Alarms

Operating Temperature:

-20°C To 50°C

Humidity Range:

0-98% RH (non-condensing)

Display:

LCD Digital Display

Data Logging:

Supports Data Report Generated

Weight:

Approximately 1.2 Kg

Enclosure Protection Class:

IP66

Packaging Details:

38*33*18cm 4.5kg

Supply Ability:

100 Units Per Month

Highlight:

TDLAS Ethane Gas Detector

C2H6 Ethane Gas Detector

Battery powered ethane detector

Product Description

Portable TDLAS Laser Battery Ethane Natural Gas Detector Equipment For C2H6

Description:

A portable laser ethane detector utilizes laser technology, specifically Tunable Diode Laser Spectroscopy (TDLS), to detect ethane gas (C2H6). These detectors are used in various applications, including leak detection in natural gas pipelines, monitoring emissions, and breath gas analysis. They offer high sensitivity, often in the parts per billion (ppb) range, and can distinguish between different gas compositions, like natural gas and biogas, by measuring ethane and methane levels simultaneously.

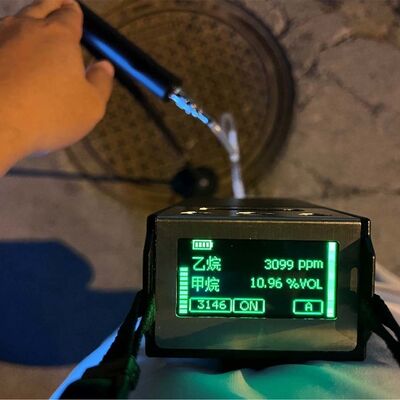

Laser technology can detect the ethane,and output the accurate concentration value in a shorter detection time.Meanwhile, you can refer to the detected methane concentration, and identify whether the leakage is from the natural gas according to the gas proportion.

Model	G10E	Detection Subject	Ethane(C2H6)\| Methane(CH4)
Measuring Principle	Laser Absorption Spectrum	Display Mode	Direct value display (ppm)
Resolution	5 ppm (Ethane)	Explosion-Proof Grade	ATEX Exib IIC T4 Gb
Response Time	0.1 s	Operating Temperature	-20 ~ 50 ºC
Concentration Range	0~10,000ppm(Ethane)	Operating Humidity	< 98%RH, no condensation
Enclosure Protection Class	IP66	Main Unit Dimension	208 x 78 x 53 mm
Power supply and Endurance	Lithium battery >10h	Main Unit Weight	1.2 kg

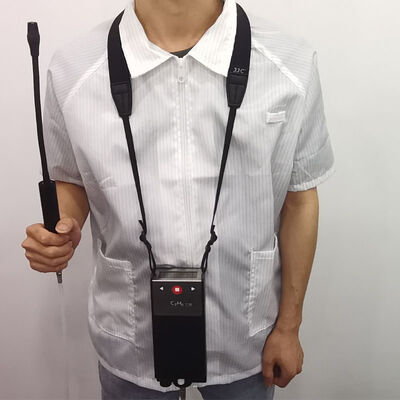

Accessories	Strap, hand-held probe	Optional Accessories	E-Bicycle-mounted bracket

Key features and benefits:
High Sensitivity:
TDLS-based detectors can achieve ppb-level sensitivity, allowing for the detection of even small leaks.
Specificity:
They can differentiate between ethane and methane, enabling accurate leak identification.
Real-time Monitoring:
TDLS allows for real-time measurements, providing immediate feedback on ethane levels.
Versatility:
They can be used in various applications, including leak detection in pipelines, industrial facilities, and even in breath analysis.
Remote Sensing:
Laser detectors can be used for remote sensing, allowing for the detection of leaks from a safe distance, avoiding the need to enter potentially hazardous areas.

Examples of applications:

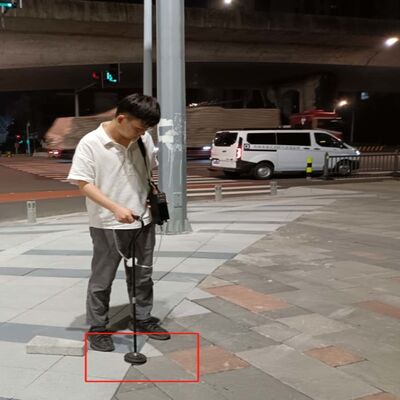

Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring ethane emissions from various sources, including landfills and agricultural activities.
