Vehicle Based Laser Natural Gas Leakage Inspection Detection System

Vehicle Based Laser Natural Gas Leakage Inspection Detection System

Brand Name:	AiLF
Model Number:	A20
MOQ:	1
Price:	$250000~$300000
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	10 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ATEX

Model:

A20

Measure Principle:

Mid-infrared Laser Absorption Spectroscopy

Detection Gas:

Methane (CH4) Ethane(C2H6)

Concentration Range:

0~10000 Ppm(Methane) 0 ~ 1000ppm (Ethane)

Static Detection Limit:

1 Ppb (Methane) 0.5 Ppb (Ethane)

Positioning Accuracy:

＜1m

Power Supply& Consumption:

12V DC 120W

Humidity Range:

0% To 95% RH (non-condensing)

Dimension:

300 X 300 X 243 Mm

Weight:

12 Kg

Data Display:

Digit,Image,Geographic Information Image

Packaging Details:

60*40*35cm x 2 22kg

Supply Ability:

10 Units Per Month

Product Description

A20 PPB Level Vehicle Based Laser Natural Gas Leakage Inspection Detection System

Description:

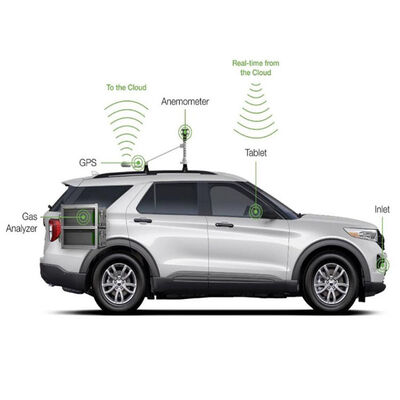

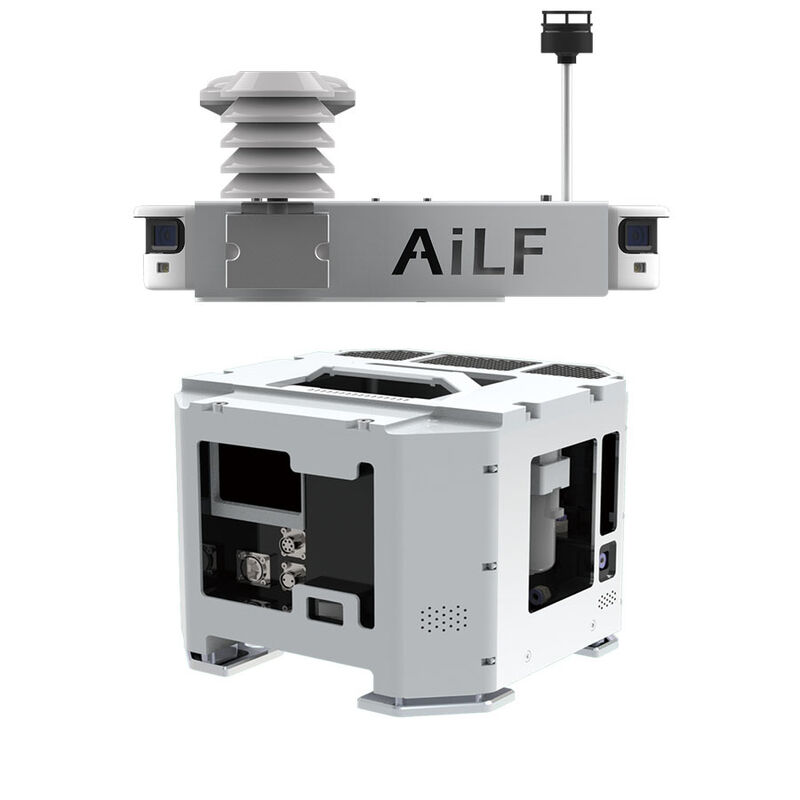

The A20 vehicle based natural gas leakage inspection system displays a real-time detection map containing information such as the route, gas concentration, anomaly alerts, and AI imaging, allowing users to grasp the complete situation at a glance. The natural gas leakage inspection system comprises a methane/ethane analyzer, a high-precision positioning module, a proprietary leak detection software. It can display a geographic information map showing the detection location and gas concentrations in real-time.

A20 vehicle based natural gas leakage inspection systems work according to the TDLAS principle (Tunable Diode Laser Absorption Spectroscopy) for the detection of methane. This laser method has the advantage that it is very sensitive at the specific measuring wavelength of methane (λ = 1.65 μm) and has no relevant cross-sensitivities to other gases in the atmosphere, e.g. exhaust gases from other cars.

Techicial Parameters:

Model	A20	Detection Subject	Methane (CH4 I Ethane (C2H6)
Measuring Principle	Mid infrared laser absorption spec roscopy	Concentration Range	0-10,000 ppm(Methane) I 0-1,000ppm(Ethane)
Resolution	l ppb(Methane) I 0.5ppb(Ethane)	Operating Temperature	-20 ~ 60 °C
Response Time	1s	Main Unit Weight	12 kg
Main Unit Dimension	300 x 300 x 243 mm	Power Supply and Power Consumption	12V DC 120W
Positioning accuracy	< lm	Data Display	Digital, Image, Geographic information image

Characters:

It significantly reduces the false alarm rate with an AI-based false alarm filtering algorithm;
Inspection without stopping, parking for leaks;
Continuous data history allows for evaluating leakage risks;

Automatic route planning to catch distribution efficiently.

High-precision positioning, panoramic imaging, and multi-parameter environmental information integration sensing;

Providing data support for intelligent AI algorithms.

Applications:
Natural Gas Pipeline Inspection:
Commonly used to inspect natural gas pipelines for leaks.
Refinery and Petrochemical Plant Monitoring:
Used to detect leaks in processing plants and storage facilities.
Landfill Gas Monitoring:
Used to detect methane emissions from landfills.
Underground Storage Tank Monitoring:
Can be used to monitor leaks from underground storage tanks.
