| Brand Name: | AiLF |
| Model Number: | G10E |
| MOQ: | 1 |
| Price: | $16500~$20000 |
| Payment Terms: | T/T |
| Supply Ability: | 20 Units Per Month |
Product Description

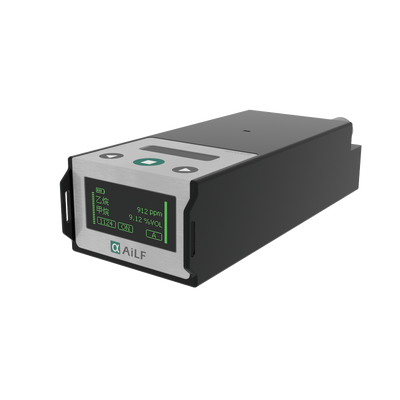

G10E Portable TDLAS Methane Detector
Designed for efficient methane leak inspection, the G10E is a portable laser gas detector that combines TDLAS measurement technology with an integrated gas sampling system. It enables operators to collect gas samples and obtain methane concentration readings directly in the field, supporting routine pipeline inspections and targeted leak investigations.
High-Flow Sampling for Efficient Inspection
The built-in gas pump provides a high sampling flow rate, helping draw gas into the detection unit for analysis. An efficient filtration system helps reduce the impact of dust and other particles during sampling, supporting stable operation in different field environments. The integrated design also reduces the need for additional sampling equipment.
Fast Measurement with Multiple Display Units
Using laser absorption spectroscopy, the G10E measures methane concentration with a rapid response time of 0.1 seconds. Measurement results can be displayed in PPM, %LEL, or %VOL, allowing operators to evaluate gas concentrations according to different inspection requirements. Its 0.5 ppm resolution supports the identification of low-level methane concentrations during leak surveys.
Automatic Calibration for Consistent Performance
The G10E features a built-in gas reference that supports continuous automatic self-calibration during operation. This helps maintain measurement consistency and reduces the need for frequent manual calibration, making the detector suitable for extended inspection tasks.
Flexible Deployment for Different Field Conditions

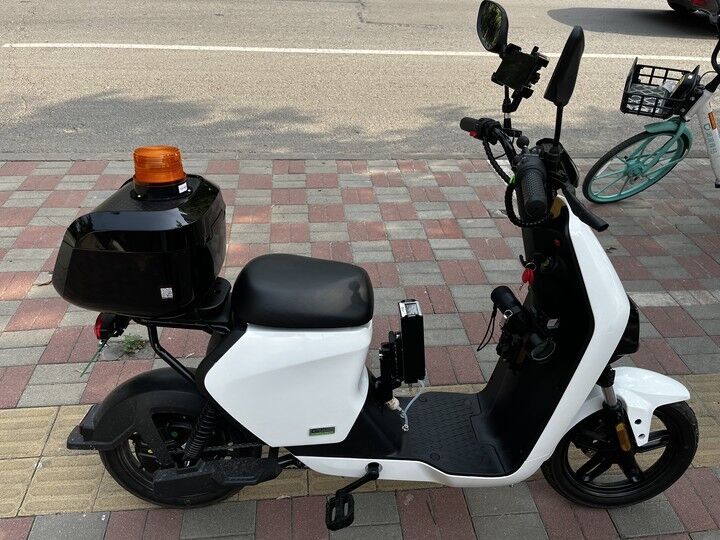

With a compact and portable design, the G10E can be used as a handheld detector or installed on a trolley or electric bicycle for mobile inspections. This flexibility allows inspection teams to adapt their equipment setup to different routes, work areas, and sampling requirements.
Built for Demanding Working Environments
The G10E features an IP66-rated enclosure and an ATEX-certified explosion-proof design (Ex ib IIC T4 Gb). It operates in temperatures from -20°C to 50°C and provides more than 10 hours of battery endurance, supporting long-duration field operations.
Applications
Natural gas pipeline leak inspection
Gas distribution network maintenance
Industrial gas system monitoring
Valve, joint, and connection leak detection
Mobile methane inspection and field surveys
| Model | G10E | Detection Subject | Ethane(C2H6)| Methane(CH4) |
| Measuring Principle | Laser Absorption Spectrum | Display Mode | Direct value display (ppm) |
| Resolution | 5 ppm (Ethane) | Explosion-Proof Grade | ATEX Exib IIC T4 Gb |
| Response Time | 0.1 s | Operating Temperature | -20 ~ 50 ºC |
| Concentration Range | 0~10,000ppm(Ethane) | Operating Humidity | < 98%RH, no condensation |
| Enclosure Protection Class | IP66 | Main Unit Dimension | 208 x 78 x 53 mm |
| Power supply and Endurance | Lithium battery >10h | Main Unit Weight | 1.2 kg |
| Accessories | Strap, hand-held probe | Optional Accessories | E-Bicycle-mounted bracket |
