Open Path Pan Tilt TDLAS Natural Methane Gas Monitor On Site Laser Leakage Inspection System

Brand Name:	AiLF
Model Number:	P20
MOQ:	1
Price:	$32000~$40000
Payment Terms:	T/T
Supply Ability:	200 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong，China

Certification:

ATEX

Product Name:

Pan Tilt On Site Laser Methane Leak Monitoring

Target Gas:

Methane (CH4)

Detection Method:

Laser Absorption Spectrum

Concentration Range:

0-50,000 Ppm • M

Detection Limit:

5 Ppm • M

Operating Temperature:

-10°C To 70°C

Operating Humidity:

0% To 98% RH (Non-condensing)

Weight:

Around 5.5kg

Response Time:

0.05S

Dimension:

139mm X 139mm X 263mm

Power Consumption:

20W

Enclouse Protection Class:

IP68

Usage:

Gas Storage Station

Packaging Details:

45*33*28cm 8.2kg

Supply Ability:

200 Units Per Month

Highlight:

Open Path methane gas monitor

TDLAS methane gas monitor

TDLAS methane monitoring system

Product Description

Open Path Pan Tilt TDLAS Laser Methane Gas Leakage Monitoring System Continuous Monitoring

Description:

The P20 Open-Path laser gas leak monitoring system is an advanced laser methane detector for pipelines and gas storage facilities. The Remote laser methane leak monitoring systems work according to the TDLAS principle (Tunable Diode Laser Absorption Spectroscopy) for the detection of methane. This laser method has the advantage that it is very sensitive at the specific measuring wavelength of methane (λ = 1.65 μm) and has no relevant cross-sensitivities to other gases in the atmosphere, e.g. exhaust gases from other cars.

P20 Pan Tilt Gas Leak Monitoring System is a 24/7 of solutions for automated continuous gas leak detection. P20 Gas Leak monitoring are designed to operate 24/7 in oil & gas locations. They are configured for continuous monitoring for Methane gas leaks, and to automatically alert, quantify and report leaks to the control room through a dedicated software system.

How P20 open path works:
The laser emits a narrow beam of light at a wavelength that matches the absorption profile of the target gas. As the beam passes through the gas, some of the light is absorbed by its molecules. A receiver then captures the reflected light, and by analyzing how much was absorbed, the system determines the gas concentration. It's designed for continuous monitoring of infrastructure like gas pipelines and can be programmed to scan specific routes.

Open Path Pan Tilt TDLAS Natural Methane Gas Monitor On Site Laser Leakage Inspection System 0
Features:

Fully automatic: P20 Open-Path operates autonomously and does not require a separate power source.

Fast detection: Detects gas leaks faster than conventional methods. Detection time 0.1 sec.

Non-stop operation: P20 Open-Path works 24 hours a day all year round.

Sensitive to methane only: The P20 open path laser monitoring is precisely calibrated to detect methane and ignores other gases, providing accurate readings without false alarms.

Network monitoring: P20 Open-Path can be integrated into a mesh network with centralized control, allowing the operator to receive real-time data from all connected devices.

Dust and rain protection: P20 Open-Path meets the IP66 protection standard and safe from harsh weather conditions like rain, snow, or sandstorms.

Receiver and transmitter self-test mode: To ensure accurate methane detection.

High sensitivity: P20 Open-Path determines the leakage of any mixture in which 1% methane is present.

Various useful features: Availability of heated optics, non-volatile memory, real time clock, auto-zero and built-in signal processing algorithm

Technical Parameters:

Model	P20	Detection Subject	Methane(CH4)
Measuring Principle	TDLAS	Detection Lase「Class	Class I Eye safe
Resolution	3 ppm·m	Indication Laser Class	Class IIIR No Direct Sight or Instrument Observation
Response Time	0.05s	Explosion-proof Grade	ATEX Exib 11B T4 Gb
Concentration Range	0 ~ 50,000 ppm·m	Enclosure Protection Class	IP68
Maximum Detection Distance	150m	Operating Temperature	-40 ~ 70 ℃
Pan-tilt Control	Azimuth 360 °&Elevation +/-90 °	Operating Humidity	< 90%RH, no condensation
Power Consumption	20W	Main Unit Dimension	139x 139 x 263mm
Main Housing Material	Stainless Steel	Weight	5.5 kg

Multi Application:

P20 's ultra-low power consumption supports solar power supply and can be connected to the backend system via 5G network. Its compact size and weight, similar to a surveillance camera, make it easier to install and dismantle.

Pan Tilt Scanning Natural gas leak monitoring systems are used in various industries, including:

Oil and Gas:

Monitoring pipelines, storage facilities, and processing plants for leaks.

Manufacturing:

Detecting leaks in industrial processes involving flammable or toxic gases.

Energy:

Monitoring gas distribution networks and power plants.

Chemical:

Detecting leaks in chemical plants and storage facilities.

Wastewater Treatment:

Detecting leaks in biogas systems and other processes involving potentially hazardous gases.

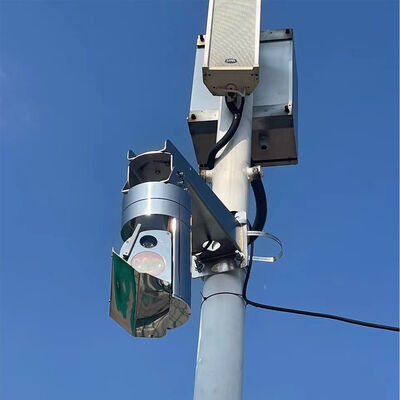

Open Path Pan Tilt TDLAS Natural Methane Gas Monitor On Site Laser Leakage Inspection System 4

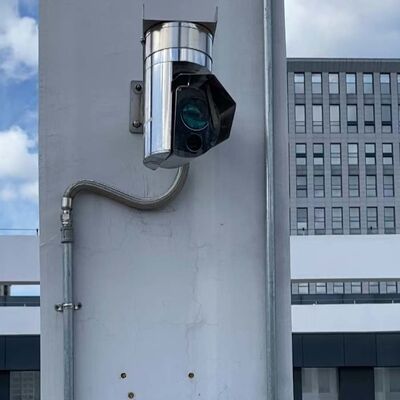

Open Path Pan Tilt TDLAS Natural Methane Gas Monitor On Site Laser Leakage Inspection System 5

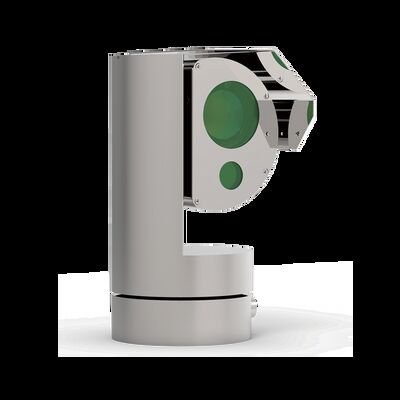

Open Path Pan Tilt TDLAS Natural Methane Gas Monitor On Site Laser Leakage Inspection System 6
