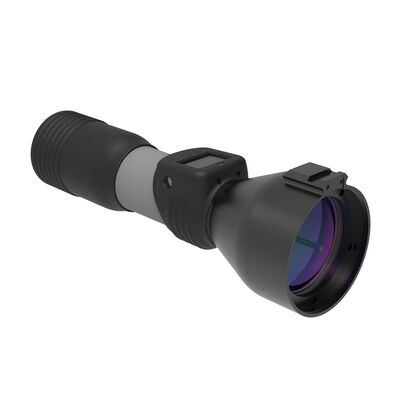

Remote Methane Leak Detector 150m High Sensitivity TDLAS Non-Contact Industrial Gas Monitoring Natural Gas Pipeline Inspection

Brand Name:	AiLF
Model Number:	L20
MOQ:	1
Price:	$9000$-$10000 per unit
Payment Terms:	T/T
Supply Ability:	200 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong, China

Certification:

ATEX

Target Gas:

Methane (CH4)

Detection Range:

0-100000 Ppm•m

Detection Distance:

Up To 150 Meters

Data Output:

Real-time Digital Display And USB Interface

Operating Temperature:

-20°C To 50°C

Power Supply:

Rechargeable Lithium-ion Battery

Sensitivity:

Detects Methane Concentrations As Low As 1 Ppm

Detection Method:

Laser-based Spectroscopy

Portability:

Handheld And Lightweight Design

Measurement Accuracy:

±2% Of Reading

Response Time:

Less Than 0.1 Second

Dimensions:

225 Mm X 70 Mm X 80 Mm

Weight:

0.5 Kg

Alarm:

Audible And Visual Alarms For Leak Detection

Battery Life:

Up To 8 Hours Continuous Use

Packaging Details:

38*33*18cm 3.7kg

Supply Ability:

200 Units Per Month

Product Description

Remote Laser Methane Leak Detector 150m High Sensitivity TDLAS Non-Contact Industrial Gas Monitoring Natural Gas Pipeline Inspection

Description:

Remote Laser Methane Leak Detector is an eye-safe laser-based natural gas detector (methane) that can quickly and efficiently detect leaks up to 150m away allowing remote detection of difficult to access places such as busy roadways, locked yards, underground piping, compressor stations, offshore platforms, plant/industrial inspections, gas processing plants, gas gathering, drilling sites, landfills, difficult terrains and more. The laser beam of the Remote laser methane leak detector is transmitted towards the target. Once reached, the beam is then reflected back to the detector for analysis. The results show on the display screen immediately.

Tunable Diode Laser Absorption Spectroscopy (TDLAS):
The core of this remote methane laser gas detector systems is often TDLAS (Tunable Diode Laser Absorption Spectroscopy). This remote laser methane leak detector emits a laser beam and measures how much of the laser light is absorbed by methane molecules in the air. When the infrared laser beam is transmitted from the launch port, some of the laser light is reflected back and converted to an electrical signal that carries the information needed to deduce the methane concentration.

Remote Methane Leak Detector 150m High Sensitivity TDLAS Non-Contact Industrial Gas Monitoring Natural Gas Pipeline Inspection 0

Parameters:

Model	L20P I L20	Detection Subject	Methane(CH4)
Measuring Principle	Laser Absorption Spectrum	Detection Laser Class	Class I Eye Safe
Resolution	3 ppm·m	Indication Laser Class	Class IIIR No direct sight or instrument observation
Response Time	0.05 s I 0.05 s I 0. l s	Enclosure Protection Class	IP68
Maximum Detection Distance	200m \| 150m	Explosion-proof Grade	ATEX Exib IIC T4 Gb
Concentration Range	0~100,000 ppm·m	Operatinging Temperature	-20 ~ 50 ºC
Power supply and endurance	Lithium battery > 12h	Operatinging Humidity	< 98%RH, no condensation
Main Unit Weight	0.52 kg I 0.51 kg	Main Unit Dimension	225 x 70 x 80 mm

Characters:
• Instant response time (0.1s)
• Large LCD screen
• Configurable alarm threshold
• Visual and audible alarms
• Maximum reading on display until resetting
• Four scanning Modes (High sensitive, building, Pipeline, Auto) for easy leak inspection and spotting (Fast) and
measurement accuracy (Slow)
• Green dot sight indication for precise targeting in daylight

The Remote laser methane leak detector is also appliable in the environmental industry. The remote detection allows users to satisfy increasing restrictions on air quality controls and increase success in reducing emissions from underground pipeline networks as well as above ground fugitive sources.

Application:

Natural Gas Pipeline Networks Inspection:

Commonly used to inspect natural gas pipelines for leaks.
Refinery and Petrochemical Plant Monitoring:

Used to detect leaks in processing plants and storage facilities.
Landfill Gas Monitoring:

Used to detect methane emissions from landfills.
Underground Storage Tank Monitoring:

Can be used to monitor leaks from underground storage tanks.

Remote Methane Leak Detector 150m High Sensitivity TDLAS Non-Contact Industrial Gas Monitoring Natural Gas Pipeline Inspection 1

ADA Application Software available.

Remote Methane Leak Detector 150m High Sensitivity TDLAS Non-Contact Industrial Gas Monitoring Natural Gas Pipeline Inspection 2
