IP68 Remote Laser Methane Gas Detector Inspection 50m For Pipeline

Remote Laser Methane Gas Detector Eye Safe Laser Based Natural Gas Leak Inspection Detection 50m

Description:

This intrinsically safe Remote Methane Leak Detector manufactured by AiLF Instruments, is an eye-safe laser-based natural gas detector (methane) that can quickly and efficiently detect leaks up to 50 meters away.

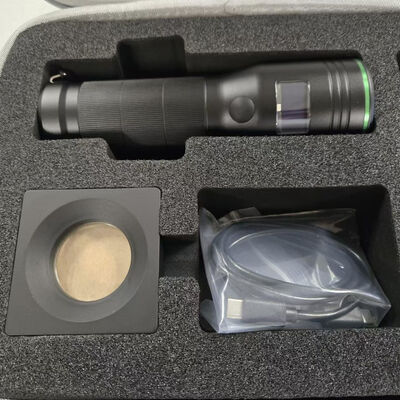

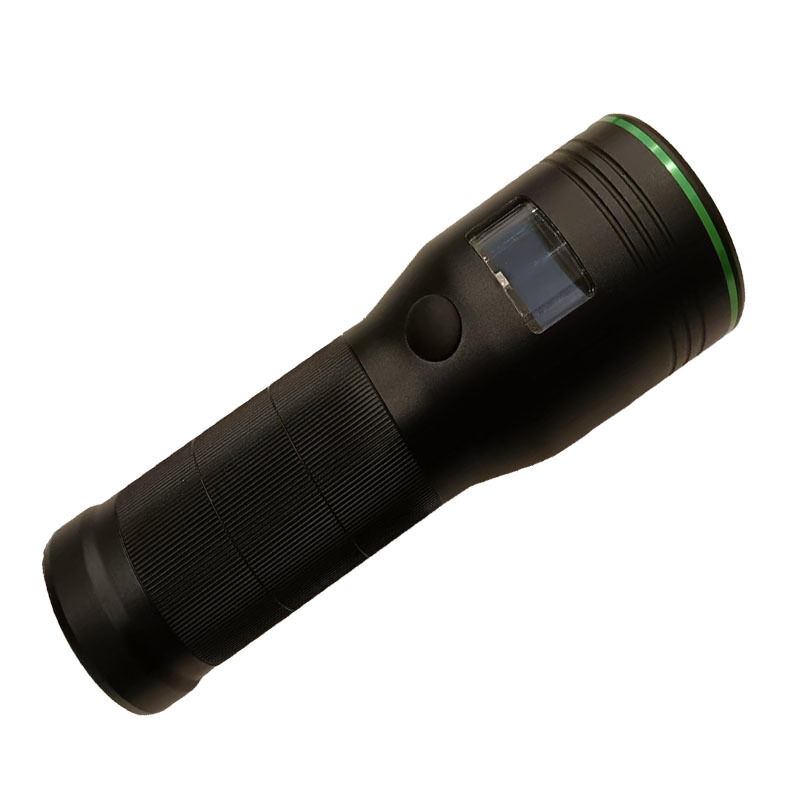

The L10M Remote Laser Methane Leak Detector is a hand-held remote methane leak detector (RMLD). This laser-based Remote Methane Detector is easy to use, highly sensitive and easily detects at 50 meters (165 feet) away, with a sensitivity to methane of ±5ppm. making it the ultimate tool for natural gas leak inspection of residential buildings and properties, gas leak inspection of natural gas pipelines, and methane leak inspection of gas tank containers.

Key Features and benefits:

Technology: Uses infrared laser light to detect methane (CH4) specifically, ignoring other gases.
Safety & Efficiency: Enables surveying from 100+ feet away, crucial for hazardous, confined, or inaccessible locations.
Detection Range: Models typically range from 30 meters (100 ft) to over 200 meters.
Sensitivity: Capable of detecting 5 ppm·m or less, often allowing detection through glass or over long distances.
Data Logging: AiLF Modern units often include GPS, photo, and Bluetooth capabilities for comprehensive reporting.

Laser Absorption Spectroscopy (TDLAS):

Remote Laser methane detectors use TDLAS (Tunable Diode Laser Absorption Spectroscopy) technology to provide precise methane detection with a tunable diode laser. The laser emits a narrow beam of light at a wavelength that matches methane’s absorption profile. As the beam passes through the gas, some of the light is absorbed by the methane molecules. A sensor then captures the reflected light, and by analyzing how much is absorbed, the system calculates the methane concentration.

Technical Parameters:

Ideal Uses:

◆ Natural gas pipeline inspections

◆ Landfill and biogas facility monitoring

◆ Urban utility infrastructure surveys

◆ Emergency response for gas leak detection

◆ Industrial facility safety inspections
