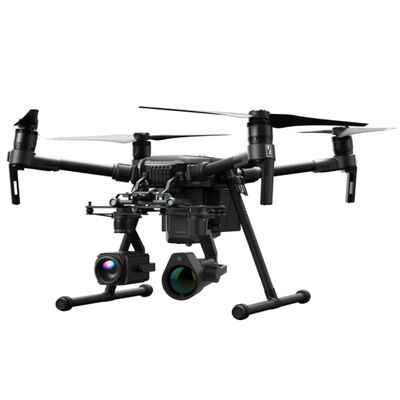

UAV Based U10 Laser Methane Leakage Detector For Aerial Drones Gas Line Leak Inspection Solution

UAV Based U10 Laser Methane Leakage Detector For Aerial Drones Gas Line Leak Inspection Solution

Description:

The U10 remote laser methane leak detection system is operated on drones and is mainly used for transmission and gathering pipeline inspections. It provides reliable inspection results for underground as well as for above ground pipelines. It allows a save flight altitude and doesn’t require specific weather conditions contrary to other technologies in the market. The gas concentration is recorded along with a georeferenced video of the right-of-way. Severe leak indications can be reported from the on-board flight engineer.

This remote laser methane leak detector weighs no more than 0.7kg, making it compact, portable, energy-efficient, and durable. Based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, the Remote laser methane leak detector system features fast response and high sensitivity. The casing is made of high-corrosion-resistant materials, suitable for use in various spatial sizes and different weather conditions. It ensures successful inspection operations in complex terrains such as mountains, hills, forests, as well as in confined areas like underground pipelines or densely built-up areas.

Specifications:

·Gas Detected: Methane

·Detection Distance: Up to 100 meters

·Detection Limit: 5ppm·m (stationary)

·Response Time: 25 milliseconds

·Integration: DJI SkyPort compatible

·Drone Compatibility: DJI Matrice 300 Series, Matrice 400 RTK

·Technology: Tunable Diode Laser Absorption Spectroscopy (TDLAS)

Technical Parameter:

Key Features:

Exceptional Sensitivity:

With its laser-based detection system, the U10 Methane leak Sensor identifies methane concentrations with unparalleled accuracy, even in low concentrations, ensuring early detection of potential leaks.

Real-Time Data Transmission:

Equipped with advanced connectivity options, the U10 methane sensor provides instant data transmission to operators, enabling swift decision-making and immediate response to detected hazards.

Versatile Application:

Whether it's monitoring vast pipeline networks, inspecting industrial facilities, or conducting environmental research, the U10's adaptability makes it suitable for a wide range of applications, ensuring comprehensive coverage and protection.

Ideal Uses:

Natural gas pipeline inspections

Landfill and biogas facility monitoring

Urban utility infrastructure surveys

Emergency response for gas leak detection

Industrial facility safety inspections
