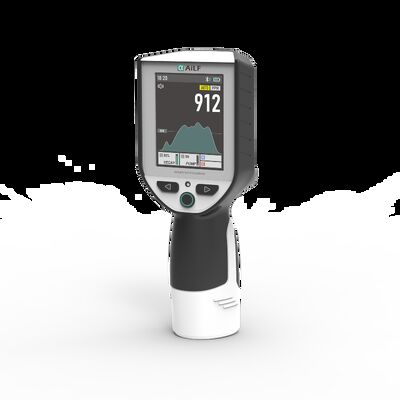

C10F Pump-Type Portable Methane Sniffer for Natural Gas Leak Detection

C10F Pump-Type Portable Methane Sniffer for Natural Gas Leak Detection

Product Overview

The AiLF Instruments C10F is a portable laser methane detector designed for natural gas pipeline inspections, petrochemical plants, and industrial gas leak monitoring. Combining advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology with a pump-assisted sampling system, this handheld instrument provides reliable methane concentration measurements for professional field inspections.

With a measurement range of 0–100% VOL and readings available in ppm, %LEL, and %VOL, the C10F helps operators identify potential methane leaks and assess gas concentrations across a variety of inspection scenarios.

Key Features and Benefits

1. Advanced TDLAS Laser Technology

The C10F uses tunable diode laser absorption spectroscopy to deliver stable performance and precise methane detection. Its laser-based measurement principle is designed for natural gas leak inspections and industrial monitoring applications.

2. Wide-Range Methane Measurement

Supporting concentration readings in ppm, %LEL, and %VOL, the C10F offers flexible measurement options for different field requirements. Its specified measurement range of 0–100% VOL supports methane concentration assessment across a broad range.

3. Pump-Assisted Gas Sampling

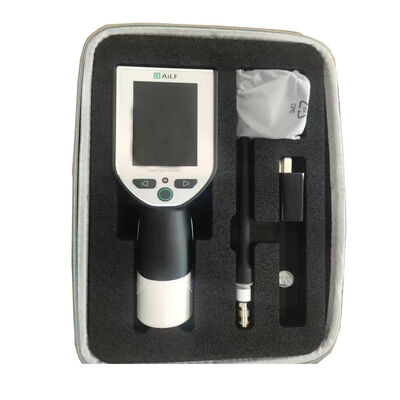

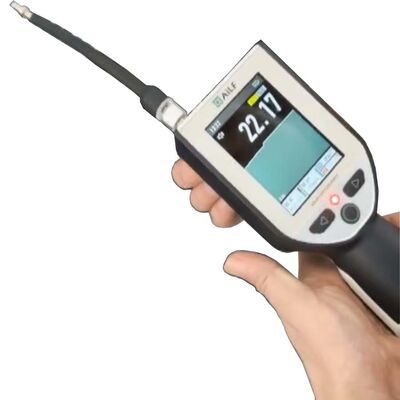

The integrated pump supports gas sampling during leak inspections. Through the rear EZG gas interface, the detector can connect to compatible accessories, including gooseneck extensions and sampling probes, allowing operators to reach different inspection points conveniently.

The interface also facilitates filter inspection and replacement, helping simplify routine maintenance.

4. Automatic Self-Calibration

The built-in gas reference supports continuous self-calibration during operation, helping maintain measurement accuracy and stability. This feature reduces the need for routine manual calibration when operating within the manufacturer's specified conditions.

5. Bluetooth Connectivity and Data Integration

The C10F supports Bluetooth connection to the AlphaOne inspection app for convenient field inspection and data management. It can also support access to external or user-specific information platforms, helping integrate inspection activities into existing workflows.

6. IP66 Protection and Hazardous-Area Suitability

With an IP66 protection rating, the C10F is designed to resist dust ingress and water jets under specified test conditions. Its Ex ib IIC T3 classification is intended for applicable hazardous-area use in accordance with the product's certification and operating requirements.

The instrument is designed for inspection work in indoor facilities, outdoor locations, gas stations, and pipeline environments.

7. Long Battery Endurance and Type-C Charging

The C10F features a rechargeable battery pack designed for low-temperature operation, fast charging, and a Type-C charging interface. These features support extended field inspections in demanding weather conditions, subject to the specified operating temperature and battery performance.

Applications

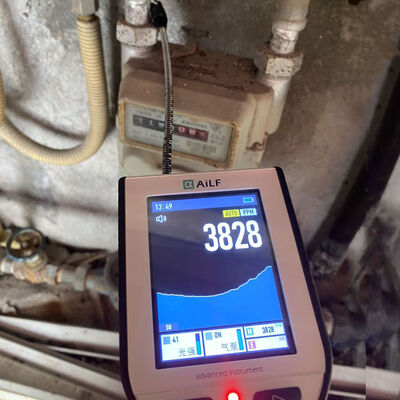

Natural Gas Leak Detection

Inspect natural gas pipelines, storage tanks, pipeline stations, and related gas infrastructure to identify potential methane leakage.

Industrial and Petrochemical Monitoring

Check for methane leaks in chemical plants, refineries, and other industrial facilities to support routine maintenance and operational safety.

Gas Distribution and Pipeline Inspection

Inspect gas distribution equipment, pipeline connections, and associated infrastructure to help locate potential leakage points and improve inspection efficiency.

Environmental Methane Monitoring

Measure methane concentrations at relevant emission sources, including landfills and agricultural facilities, where the instrument's specifications are suitable for the intended monitoring task.

Why Choose the AiLF C10F?

The C10F combines pump-assisted sampling, TDLAS laser technology, automatic self-calibration, multiple concentration units, and Bluetooth connectivity in one portable instrument. Its rugged design and compatibility with sampling accessories make it a practical option for professionals conducting natural gas leak inspections and industrial methane monitoring.

Contact AiLF Instruments for detailed specifications, compatible sampling probes, and application support.
