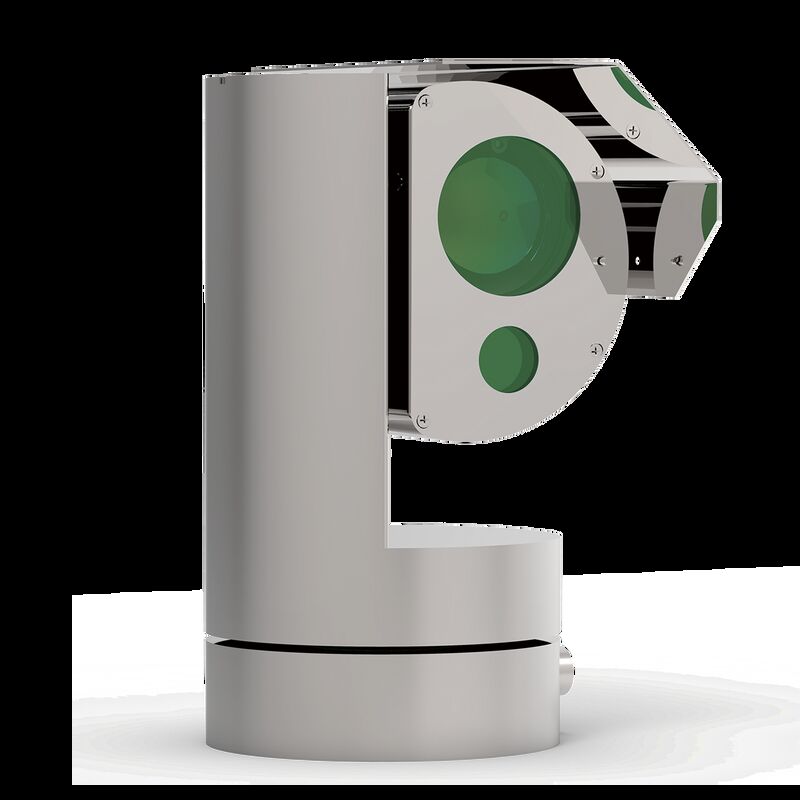

20W IP68 Combustible Gas Leak Detector Equipment Custom

Brand Name:	AiLF
Model Number:	P20
MOQ:	1
Price:	$32000~$40000
Payment Terms:	T/T
Supply Ability:	200 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong，China

Certification:

ATEX

Product Name:

Laser Methane Pan Tilt Monitoring

Target Gas:

Methane (CH4)

Detection Method:

Laser Absorption Spectrum

Concentration Range:

0-50,000 Ppm • M

Detection Limit:

5 Ppm • M

Operating Temperature:

-10°C To 70°C

Operating Humidity:

0% To 98% RH (Non-condensing)

Weight:

Around 5.5kg

Response Time:

0.05 S

Dimension:

139mm X 139mm X 263mm

Power Consumption:

20W

Enclouse Protection Class:

IP68

Usage:

Gas Station

Packaging Details:

45*33*28cm 8.2kg

Supply Ability:

200 Units Per Month

Highlight:

20W Combustible Gas Leak Detector

IP68 Combustible Gas Leak Detector

20W natural gas detection equipment

Product Description

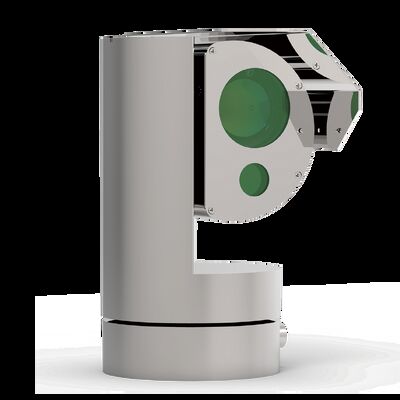

P20 Light Weight Open Path TDLAS Laser Pan-tilt Natural Gas Storage Station Leak Detector Measurement Monitoring

Description:

In stations and process areas, it requires continuous rotation for the scanning laser pan-tilt to inspect along each route; To accurately detect distant targets, it must have good locating accuracy and repeatability.

P20 integrates laser detection, leak point determination, recording, inspection route management, and network communication on the pan-tilt, making it a complete monitoring and alarm device. Even if the backend system is offline, the pan-tilt can independently and continuously perform on-site leak monitoring and synchronize breakpoint alarm data when the system is restored.

Laser Methane Scanner (LMS):

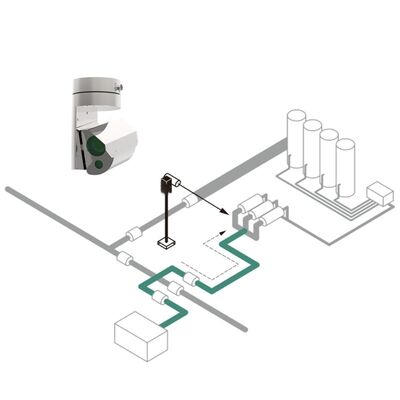

This Pan tilt Laser Methane Monitoring system uses a laser to detect methane gas concentrations at a distance, often up to a kilometer. It's designed for continuous monitoring of infrastructure like gas pipelines and can be programmed to scan specific routes.

20W IP68 Combustible Gas Leak Detector Equipment Custom 0
Features:

Intrinsically safe and explosion-proof

Continuous operation high-reliability

Pan-tilt

Closed-loop control

Reduced power consumption by 5 times to 20w

Reduced size by 4 times

Reduced weight by 6 times to 5.5 kg

Plug-and-work automatic recovery of inspection

Pan-tilt integrates detection, alarm, and track control functions

Technical Parameters:

Model	P20	Detection Subject	Methane(CH4)
Measuring Principle	TDLAS	Detection Lase「Class	Class I Eye safe
Resolution	3 ppm·m	Indication Laser Class	Class IIIR No Direct Sight or Instrument Observation
Response Time	0.05s	Explosion-proof Grade	ATEX Exib 11B T4 Gb
Concentration Range	0 ~ 50,000 ppm·m	Enclosure Protection Class	IP68
Maximum Detection Distance	150m	Operating Temperature	-40 ~ 70 ℃
Pan-tilt Control	Azimuth 360 °&Elevation +/-90 °	Operating Humidity	< 90%RH, no condensation
Power Consumption	20W	Main Unit Dimension	139x 139 x 263mm
Main Housing Material	Stainless Steel	Weight	5.5 kg

Multi Application:

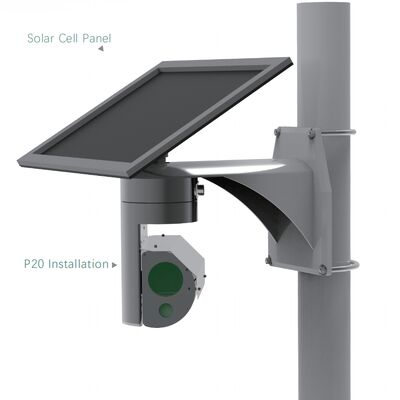

P20 's ultra-low power consumption supports solar power supply and can be connected to the backend system via 5G network. Its compact size and weight, similar to a surveillance camera, make it easier to install and dismantle.

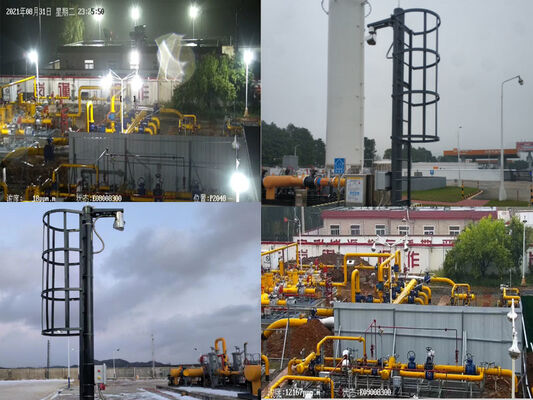

Scanning gas leak monitoring systems are used in various industries, including:

Oil and Gas:

Monitoring pipelines, storage facilities, and processing plants for leaks.

Manufacturing:

Detecting leaks in industrial processes involving flammable or toxic gases.

Energy:

Monitoring gas distribution networks and power plants.

Chemical:

Detecting leaks in chemical plants and storage facilities.

Wastewater Treatment:

Detecting leaks in biogas systems and other processes involving potentially hazardous gases.

20W IP68 Combustible Gas Leak Detector Equipment Custom 3

20W IP68 Combustible Gas Leak Detector Equipment Custom 4
