IP68 Pan Tilt TDLAS Laser Home Methane Detector Flammable Gas Monitoring System

IP68 Pan Tilt TDLAS Laser Home Methane Detector Flammable Gas Monitoring System

IP68 Pan Tilt TDLAS Laser Home Methane Detector Flammable Gas Monitoring System

Brand Name:	AiLF
Model Number:	P20
MOQ:	1
Price:	$33000~$40000
Payment Terms:	T/T
Supply Ability:	200 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong，China

Certification:

ATEX

Product Name:

Pan Tilt On Site Laser Methane Leak Monitoring

Target Gas:

Methane (CH4)

Operating Temperature:

-10°C To 70°C

Response Time:

0.05 S

Power Consumption:

20W

Enclouse Protection Class:

IP68

Usage:

Gas Storage Station

Packaging Details:

45*33*28cm 8.2kg

Supply Ability:

200 Units Per Month

Highlight:

IP68 home methane detector

,

Flammable Gas home methane detector

,

IP68 flammable gas leak detector

Product Description

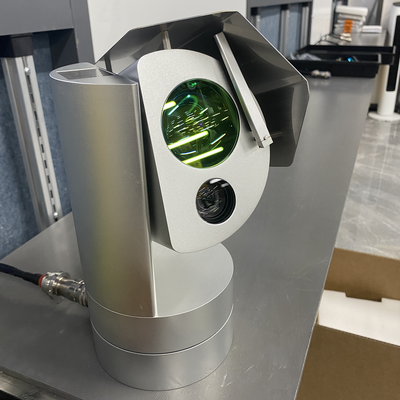

IP68 Open Path On Site Pan tilt TDLAS Laser Methane leakage Monitoring System

Features:

Intrinsically safe and explosion-proof

Continuous operation high-reliability

Pan-tilt

Closed-loop control

Reduced power consumption by 5 times to 20w

Reduced size by 4 times

Reduced weight by 6 times to 5.5 kg

Plug-and-work automatic recovery of inspection

Pan-tilt integrates detection, alarm, and track control functions

Technical Parameters:

Model	P20	Detection Subject	Methane(CH4)
Measuring Principle	TDLAS	Detection Lase「Class	Class I Eye safe
Resolution	3 ppm·m	Indication Laser Class	Class IIIR No Direct Sight or Instrument Observation
Response Time	0.05s	Explosion-proof Grade	ATEX Exib 11B T4 Gb
Concentration Range	0 ~ 50,000 ppm·m	Enclosure Protection Class	IP68
Maximum Detection Distance	150m	Operating Temperature	-40 ~ 70 ℃
Pan-tilt Control	Azimuth 360 °&Elevation +/-90 °	Operating Humidity	< 90%RH, no condensation
Power Consumption	20W	Main Unit Dimension	139x 139 x 263mm
Main Housing Material	Stainless Steel	Weight	5.5 kg

Multi Application:

P20 's ultra-low power consumption supports solar power supply and can be connected to the backend system via 5G network.

IP68 Pan Tilt TDLAS Laser Home Methane Detector Flammable Gas Monitoring System

Pan Tilt Scanning Natural gas leak monitoring systems are used in various industries, including:

Oil and Gas:

Monitoring pipelines, storage facilities, and processing plants for leaks.

Manufacturing:

Detecting leaks in industrial processes involving flammable or toxic gases.

Energy:

Monitoring gas distribution networks and power plants.

Chemical:

Detecting leaks in chemical plants and storage facilities.

Wastewater Treatment:

Detecting leaks in biogas systems and other processes involving potentially hazardous gases.

IP68 Pan Tilt TDLAS Laser Home Methane Detector Flammable Gas Monitoring System

IP68 Pan Tilt TDLAS Laser Home Methane Detector Flammable Gas Monitoring System

IP68 Pan Tilt TDLAS Laser Home Methane Detector Flammable Gas Monitoring System
