| Brand Name: | AiLF |
| Model Number: | U10 |
| MOQ: | 1 |
| Price: | USD40000~USD50000 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 Unit per Month |

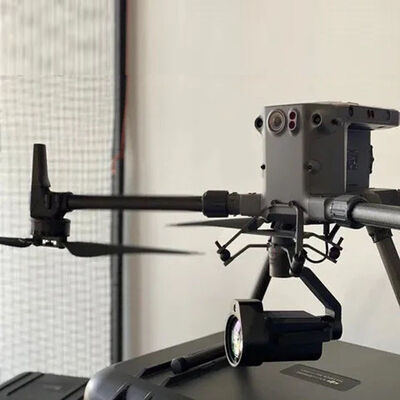

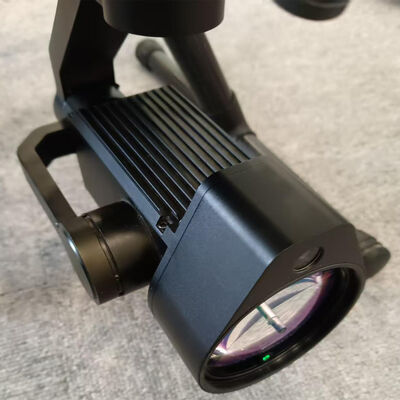

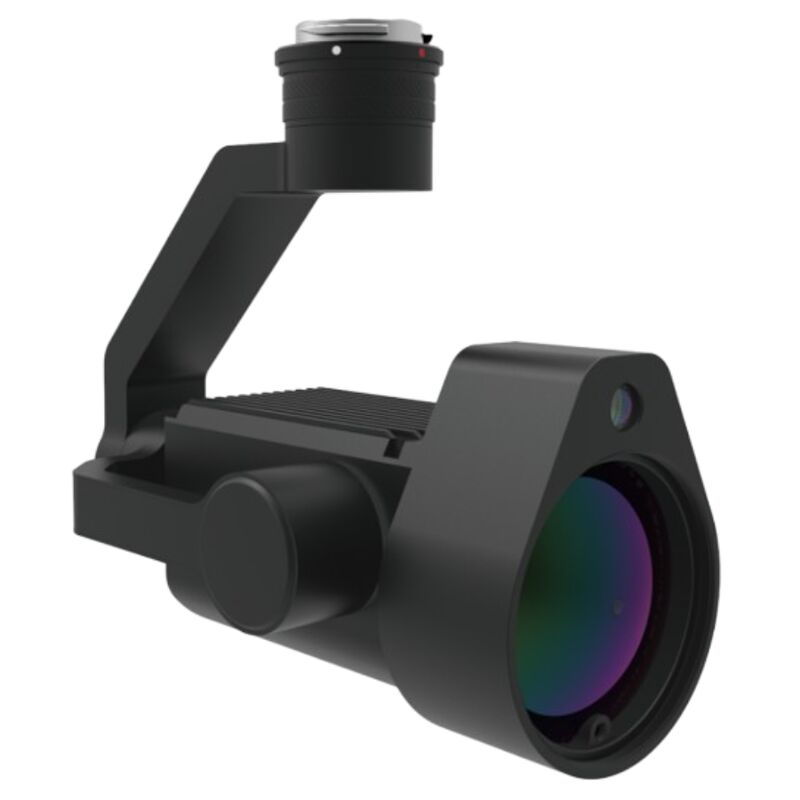

AiLF U10 Drone UAV Based Remote Natural Gas Pipeline Leakage Inspection Remote Laser Methane Detector
Description:
The U10 Laser Methane Leakage Detector is a high-performance gas sensor designed specifically for aerial drones. Using advanced Tunable Diode Laser Absorption Spectroscopy (TDLAS), the U10 offers fast, reliable detection of methane leaks from as far as 100 meters away. It responds in as little as 25 milliseconds and can detect methane concentrations as low as 5ppm·m, providing critical insight for utility inspections, environmental surveys, and industrial safety operations.
Technical Parameters:
|
Model |
U10 |
Detection Subject |
Methane(CH4) |
|
Measuring Principle |
Laser Absorption Spectrum |
Detection Laser Class |
Class I Eye Safe |
|
Resolution |
3 ppm·m |
Indication Laser Class |
Class IIIR No direct sight or instrument observation |
|
Response Time |
0.025s |
Operating Temperature |
-20 ~ 50 ℃
|
|
Maximum Detection Distance |
150m |
Operating Humidity |
< 98%RH, no condensation |
|
Concentration Range |
0~50,000 ppm·m |
Main Unit Dimension |
174 x 89 x 163 mm |
|
Compatible with UAV Model |
DJI M350 Series |
Main Unit Weight |
0.7kg |
Characters:
Precision Methane Detection
TDLAS technology enables high-sensitivity CH₄ detection from up to 100 meters away.
Seamless Drone Integration
Easily connects to DJI Matrice 200 Series and M300 RTK via SkyPort.
Rapid Response
25ms response time enables near-instant detection and feedback.
Lightweight Design
Adds minimal weight to the aerial drone payload, preserving flight time and maneuverability.
Reliable in Harsh Conditions
Engineered for stability and accuracy across a wide range of inspection environments.
Ideal Uses:
Natural gas pipeline inspections
Landfill and biogas facility monitoring
Urban utility infrastructure surveys
Emergency response for gas leak detection
Industrial facility safety inspections
