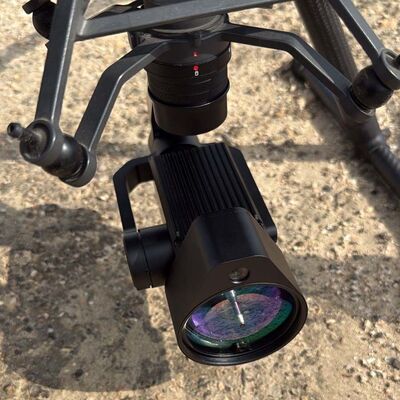

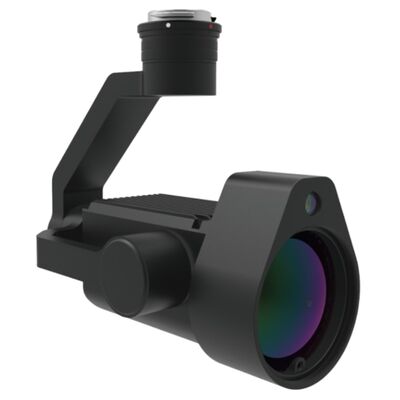

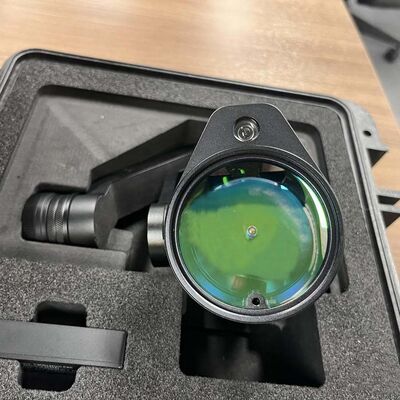

U10 UAV-Mounted Laser Methane Detector

Drone-Based Methane Leak Detection for Pipeline and Industrial Inspection

The AiLF U10 UAV-mounted laser methane detector is a compact, lightweight methane detection payload designed for drone-based gas leak inspection. Using tunable diode laser absorption spectroscopy (TDLAS), the U10 enables fast and sensitive detection of methane (CH₄) from the air.

With a 150 m open-path detection range, the U10 is designed for natural gas pipeline inspection, petrochemical facilities, landfill monitoring, and industrial gas leak detection. Its lightweight design helps extend UAV flight time while reducing the operational risks and costs associated with conventional ground inspections.

The U10 is compatible with DJI M400 and M350 series UAVs and supports inspection video, event records, and data export through the application. System integration services are also available for transmitting inspection data and on-site video to customer platforms.

Key Features

• Laser-based methane detection using TDLAS technology
• Fast response time: 0.025 s
• Detection range: up to 150 m
• High sensitivity: 3 ppm·m resolution
• Lightweight payload: 0.7 kg
• Compatible with DJI M400 / M350 Series
• Integrated CMOS camera and gimbal for aerial inspection
• Inspection reports, event records, video and logs can be exported
• Supports integration with customer data management platforms

Technical Specifications

Applications

The U10 is suitable for:

• Natural gas pipeline leak detection
• Oil & gas and petrochemical facility inspection
• Landfill and biogas methane monitoring
• Urban gas infrastructure inspection
• Industrial safety inspection
• Emergency gas leak detection

Why Use a UAV-Mounted Methane Detector?

Drone-based methane inspection allows operators to survey large or difficult-to-access areas without relying entirely on manual ground inspection. The U10 helps detect methane leaks remotely, improving inspection efficiency while reducing exposure to potentially hazardous areas.
