| Brand Name: | AiLF |
| Model Number: | U10 |
| MOQ: | 1 |
| Price: | USD40000~USD50000 |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 20 Unit per Month |

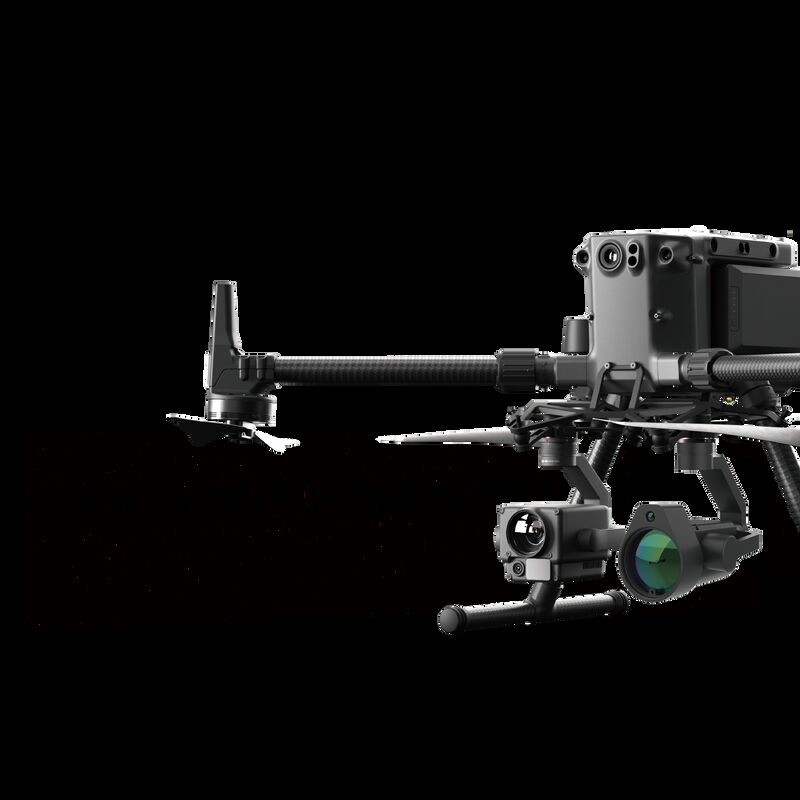

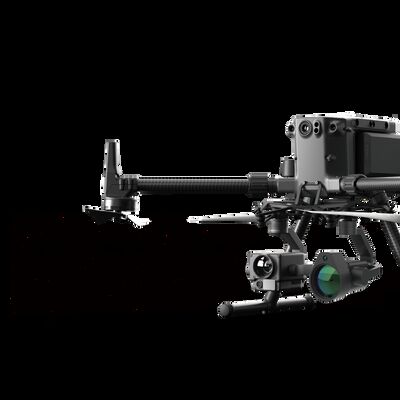

Remote Laser Methane Detector Long Distance U10 Payload Drone UAV Based Natural Gas Pipeline Leakage Inspection
Description:
The U10 remote laser methane detector adopted advanced AiLF laser absorption spectrum technology enables U series to have a response time of 0.025s and a very low static detection limit 3 ppm•m, capable of effectively detecting gas leaks at the height of over a hundred meters.
It supports two automatic inspection modes of area scanning and route inspection, and can import KML files to GIS routes to generate inspection tasks. On-site selection allows for leak scanning in villages or stations.
It supports exporting inspection reports and event records through the app, and the SD card is used to store inspection videos and logs. System integration services are provided to transmit inspection data and on-site videos to customer's information platform.
Technical Parameter:
|
Model |
U10 |
Detection Subject |
Methane(CH4) |
|
Measuring Principle |
Laser Absorption Spectrum |
Detection Laser Class |
Class I Eye Safe |
|
Resolution |
3 ppm·m |
Indication Laser Class |
Class IIIR No direct sight or instrument observation |
|
Response Time |
0.025s |
Operating Temperature |
-20 ~ 50 ℃ |
|
Maximum Detection Distance |
150m |
Operating Humidity |
< 98%RH, no condensation |
|
Concentration Range |
0~50,000 ppm·m |
Main Unit Dimension |
174 x 89 x 163 mm |
|
Compatible with UAV Model |
DJI M350 Series |
Main Unit Weight |
0.7kg |
Characters:
Precision Methane Detection
TDLAS technology enables high-sensitivity Methane (CH₄) detection from up to 100 meters away.
Seamless Drone Integration
Easily connects to DJI M300 or M350 RTK via SkyPort.
Rapid Response
0.025s response time enables near-instant detection and feedback.
Lightweight Design
Adds minimal weight to the aerial drone payload, preserving flight time and maneuverability.
Reliable in Harsh Conditions
Engineered for stability and accuracy across a wide range of inspection environments.
Ideal Uses:
Natural gas pipeline inspections
Landfill and biogas facility monitoring
Urban utility infrastructure surveys
Emergency response for gas leak detection
Industrial facility safety inspections
