Car Based Laser Confined Space Gas Detector Pipeline Methane Leakage Inspection

Brand Name:	AiLF
Model Number:	A20
MOQ:	1
Price:	$280000
Payment Terms:	L/C,T/T
Supply Ability:	20 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ISO

Detection Gas:

Methane (CH4) Ethane(C2H6)

Measure Principle:

Laser Absorption Spectrum

Power Supply:

12V DC

Power Consumption:

120W

Dimensions:

300 Mm X 300 Mm X 243 Mm

Detection Range:

0 To 10000ppm (Methane)/0 To 1000ppm(Ethane)

Positioning Accuracy:

＜1m

Detection Method:

Laser Absorption Spectroscopy

Data Display:

Digit,Image,Geographic Information Image

Response Time:

1 Second

Operating Temperature:

-20°C To 60°C

Static Detection Limit:

1 Ppb(Methane) 0.5 Ppb(Ethane)

Main Unit Weight:

12 Kg

Packaging Details:

60*40*35cmx2, 22kg

Supply Ability:

20 Units Per Month

Highlight:

pipeline confined space gas detector

Methane confined space gas detector

Methane pipeline leak detector

Product Description

Vehicle Based Laser Methane Leakage Detector System Natural Gas Underground Pipeline Networks inspection

Description:

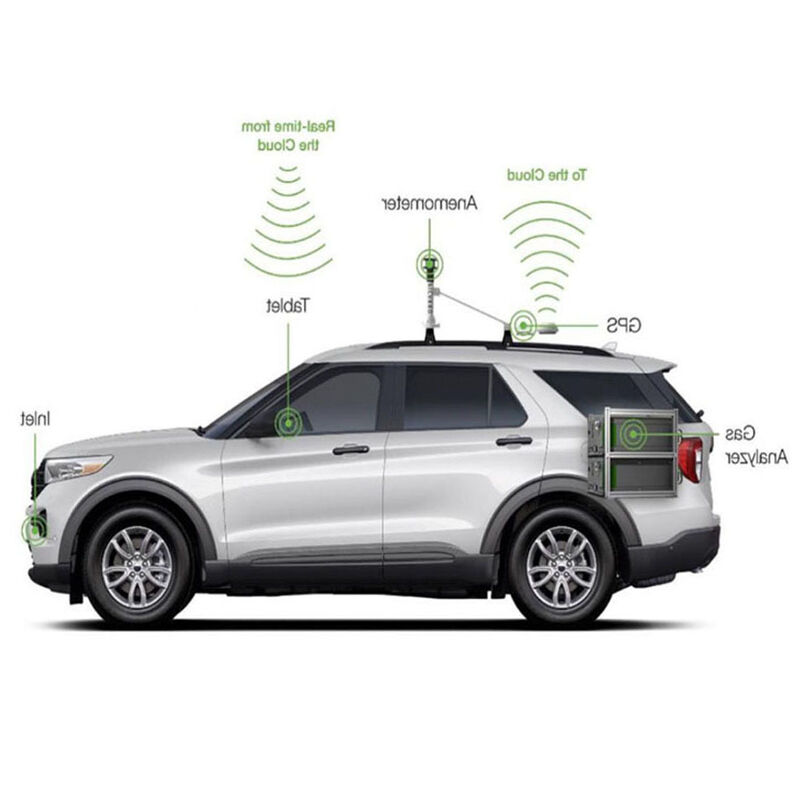

The A20 vehicle based natural gas leakage inspection system displays a real-time detection map containing information such as the route, gas concentration, anomaly alerts, and AI imaging, allowing users to grasp the complete situation at a glance. The system comprises a methane/ethane analyzer, a high-precision positioning module, a proprietary leak detection software. It can display a geographic information map showing the detection location and gas concentrations in real-time.

A20 With static detection limit low to ppb AiLF's mid-infrared laser absorption spectroscopy technology ensures high sensitivity detection while enabling the maintainability of critical components. With a wide temperature range and low filtration requirements, it has truly achieved laboratory instrument performance with industrial field reliability.

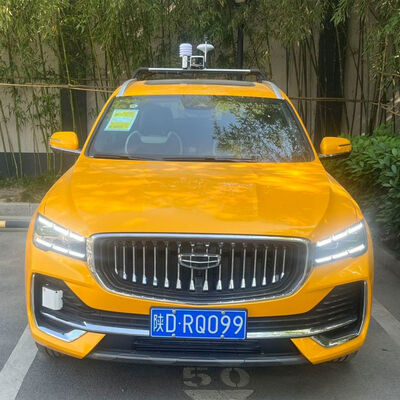

Car Based Laser Confined Space Gas Detector Pipeline Methane Leakage Inspection 0

Characters:

It significantly reduces the false alarm rate with an AI-based false alarm filtering algorithm;
Inspection without stopping, parking for leaks;
Continuous data history allows for evaluating leakage risks;

Automatic route planning to catch distribution efficiently.

High-precision positioning, panoramic imaging, and multi-parameter environmental information integration sensing;

Providing data support for intelligent AI algorithms.

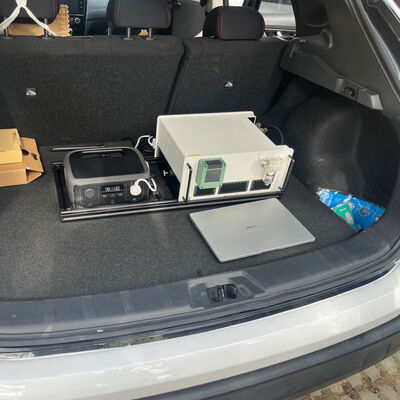

Car Based Laser Confined Space Gas Detector Pipeline Methane Leakage Inspection 1

Techicial Parameters:

Model	A20	Detection Subject	Methane (CH4 I Ethane (C2H6)
Measuring Principle	Mid infrared laser absorption spec roscopy	Concentration Range	0-10,000 ppm(Methane) I 0-1,000ppm(Ethane)
Resolution	l ppb(Methane) I 0.5ppb(Ethane)	Operating Temperature	-20 ~ 60 °C
Response Time	1s	Main Unit Weight	12 kg
Main Unit Dimension	300 x 300 x 243 mm	Power Supply and Power Consumption	12V DC 120W
Positioning accuracy	< lm	Data Display	Digital, Image, Geographic information image

Applications:
Natural Gas Pipeline Inspection:
Commonly used to inspect natural gas pipelines for leaks.
Refinery and Petrochemical Plant Monitoring:
Used to detect leaks in processing plants and storage facilities.
Landfill Gas Monitoring:
Used to detect methane emissions from landfills.
Underground Storage Tank Monitoring:
Can be used to monitor leaks from underground storage tanks.
