| Brand Name: | AiLF |
| Model Number: | P20 |
| MOQ: | 1 |
| Price: | $33000~$40000 |
| Payment Terms: | T/T |
| Supply Ability: | 200 Units Per Month |

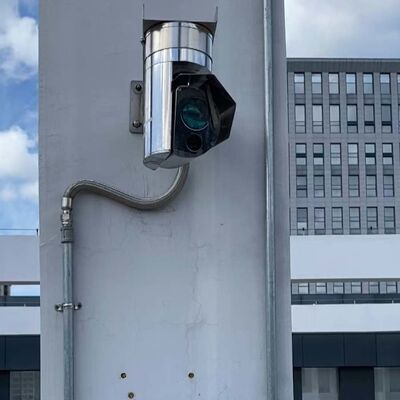

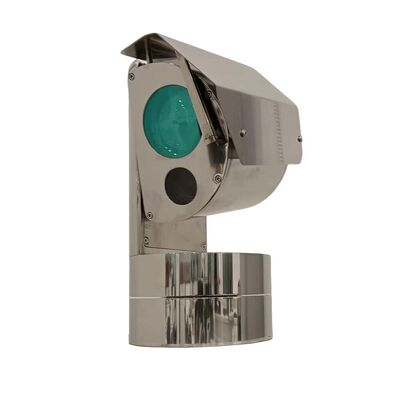

IP68 Open Path On Site Pan Tilt TDLAS Laser Methane Leakage Monitoring System
Features:
Intrinsically safe and explosion-proof
Continuous operation high-reliability
Pan-tilt Multi Application:
P20's ultra-low power consumption supports solar power supply and can be connected to the backend system via 5G network.
Pan Tilt Scanning Natural Gas Leak Monitoring Systems are used in various industries, including:
Oil and Gas:
Monitoring pipelines, storage facilities, and processing plants for leaks.
Manufacturing:
Detecting leaks in industrial processes involving toxic gases.
Energy:
Monitoring gas distribution networks and power plants.
Chemical:
Detecting leaks in chemical plants and storage facilities.
Wastewater Treatment:
Detecting leaks in biogas systems and other processes involving potentially hazardous gases.
Closed-loop Control:
Reduced power consumption by 5 times to 20 W
Reduced size by 4 times
Reduced weight by 6 times to 5.5 kg
Plug-and-work automatic recovery of inspection
Pan-tilt integrates detection, alarm, and tracking control functions
|
Model |
P20 |
Detection Subject |
Methane(CH4) |
|
Measuring Principle |
TDLAS |
Detection Lase「Class |
Class I Eye safe |
|
Resolution |
3 ppm·m |
Indication Laser Class |
Class IIIR No Direct Sight or Instrument Observation |
|
Response Time |
0.05s |
Explosion-proof Grade |
ATEX Exib 11B T4 Gb |
|
Concentration Range |
0 ~ 50,000 ppm·m |
Enclosure Protection Class |
IP68 |
|
Maximum Detection Distance |
150m |
Operating Temperature |
-40 ~ 70 ℃ |
|
Pan-tilt Control |
Azimuth 360 °&Elevation +/-90 ° |
Operating Humidity |
< 90%RH, no condensation |
|
Power Consumption |
20W |
Main Unit Dimension |
139x 139 x 263mm |
|
Main Housing Material |
Stainless Steel |
Weight |
5.5 kg |
