Pipeline Leakage Natural Combustible Gas Monitor TDLAS Laser System

Brand Name:	AiLF
Model Number:	G10E
MOQ:	1
Price:	$12000~$15000
Payment Terms:	T/T
Supply Ability:	100 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ATEX

Product Name:

Portable Laser Methane Detector

Target Gas:

Methane (CH4)

Detection Range:

0~100%VOL(Methane)

Battery Life:

Up To 10 Hours Continuous Use

Power Supply:

Rechargeable Lithium-ion Battery

Dimensions:

208mm X 78mm X 53mm

Detection Method:

Laser Absorption Spectrum

Response Time:

< 0.1 Seconds

Alarm Type:

Audible & Visual Alarms

Operating Temperature:

-20°C To 50°C

Humidity Range:

0-98% RH (non-condensing)

Display:

LCD Digital Display

APP:

Available

Weight:

Approximately 1.1 Kg

Enclosure Protection Class:

IP66

Packaging Details:

38*33*18cm 4.5kg

Supply Ability:

100 Units Per Month

Highlight:

Pipeline combustible gas monitor

TDLAS combustible gas monitor

Combustible natural gas detection system

Product Description

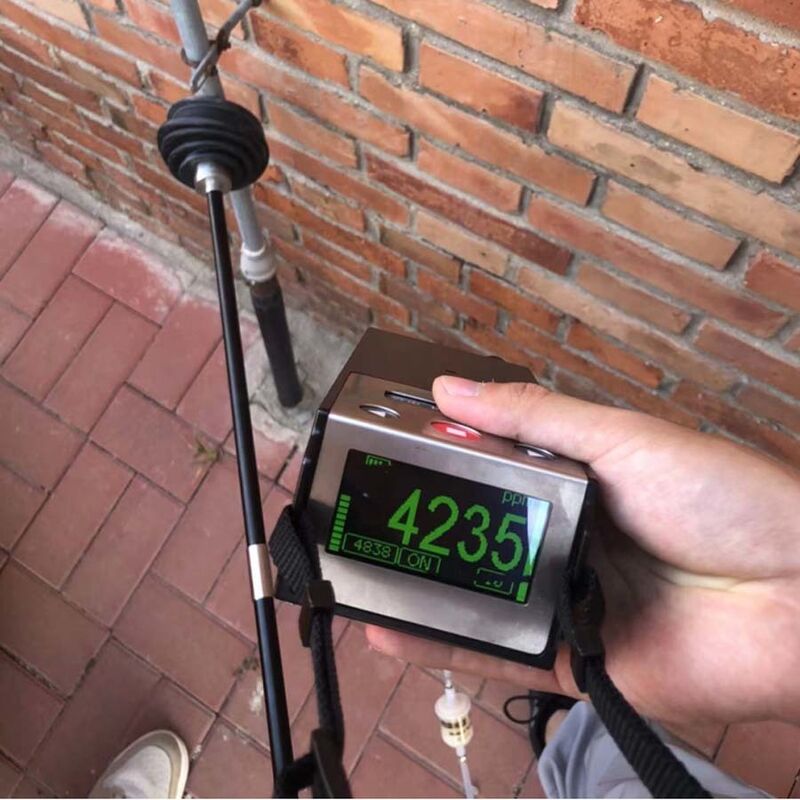

Natural Gas Pipeline Leakage Portable TDLAS Laser Combustible Methane Inspection with Probe

Description:

Portable Laser Gas Detector provides better detection performance and long service life that traditional equipment don't have; Combined with mature sampling methods by a trolley or a probe, it makes leak detection rapider and more accurate.

With the built-in gas cell reference, the G10 portable laser gas detector unit can continuously self-calibrate during operation to ensure accurate detection.

Full-range detection supports readings of concentration in ppm, % LEL and %VOL.

Equipped with the gas pump with a higher flow and efficient filtering system, G10 can be mounted on a trolley or an electric bicycle.

TDLAS Laser technology can detect the ethane,and output the accurate concentration value in a shorter detection time.Meanwhile, you can refer to the detected methane concentration, and identify whether the leakage is from the natural gas according to the gas proportion.

Model	G10	Detection Subject	Methane(CH4)
Measuring Principle	Laser Absorption Spectrum	Display Unit	PPM,%LEL,%VOL
Resolution	0.5 ppm	Explosion-Proof Grade	ATEX Exib IIC T4 Gb
Response Time	0.1 s	Operating Temperature	-20 ~ 50 ºC
Concentration Range	0~100% VOL	Operating Humidity	< 98%RH, no condensation
Enclosure Protection Class	IP66	Main Unit Dimension	208 x 78 x 53 mm
Power supply and Endurance	Lithium battery >10h	Main Unit Weight	1.1 kg
Accessories	Strap, hand-held probe	Optional Accessories	Bell-shaped probe,trolley

Key features and benefits:
High Sensitivity:
TDLAS-based detectors can achieve 0.5ppm-level sensitivity, allowing for the detection of even small leaks.
Specificity:
This TDLAS based laser methane detector can enabling accurate leak identification with fast response time at 0.1s.
Real-time Monitoring:
TDLAS allows for real-time measurements, providing immediate feedback on methane values.
Versatility:
They can be used in various applications, including leak detection in pipelines, industrial facilities, and landfills.

Examples of applications:
Natural gas pipeline inspections

Landfill and biogas facility monitoring

Urban utility infrastructure surveys

Emergency response for gas leak detection

Industrial facility safety inspections

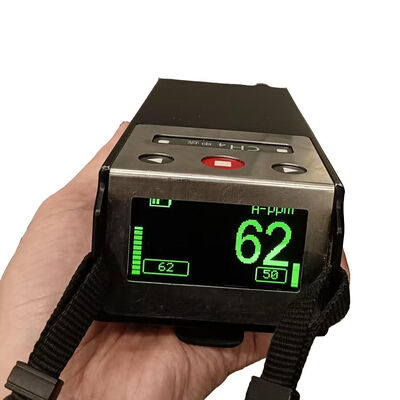

Pipeline Leakage Natural Combustible Gas Monitor TDLAS Laser System 1

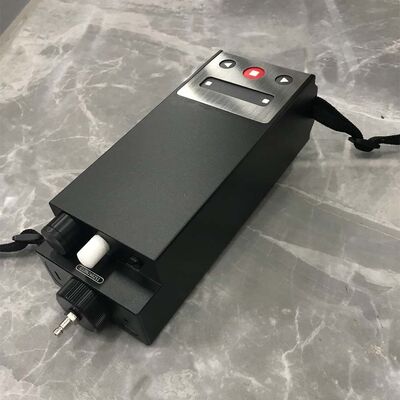

Pipeline Leakage Natural Combustible Gas Monitor TDLAS Laser System 2
