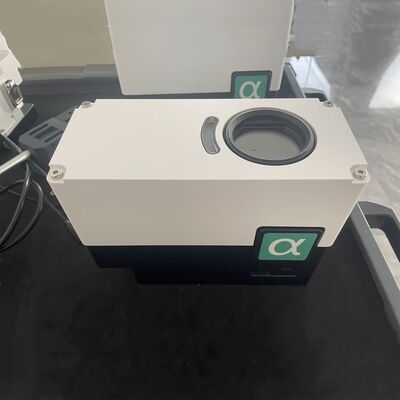

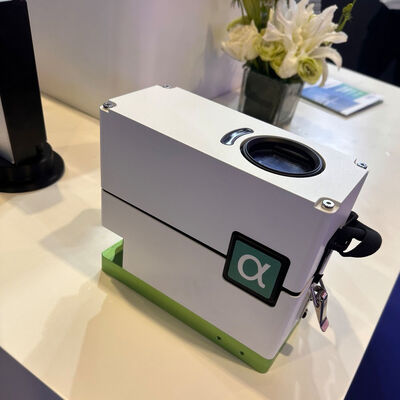

Portable TDLAS Laser Combustible Gas Leak Detector Methane Ethane Inspection PPB Level

Brand Name:	AiLF
Model Number:	G10E
MOQ:	1
Price:	$63000~$70000
Payment Terms:	T/T
Supply Ability:	100 Units Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Shandong,China

Certification:

ISO

Product Name:

Portable Laser Methane&Ethane Detector

Target Gas:

Methane (CH4) Ethane(C2H6)

Detection Range:

0-1000ppm(Ethane) 0~10000ppm(Methane)

Battery Life:

Up To 8 Hours Continuous Use

Power Supply:

Rechargeable Lithium-ion Battery

Dimensions:

246mm X 98mm X 164mm

Detection Method:

Laser Absorption Spectrum

Response Time:

< 1 Seconds

Alarm Type:

Audible & Visual Alarms

Operating Temperature:

-20°C To 50°C

Humidity Range:

0-98% RH (non-condensing)

Display:

LCD Digital Display

Data Logging:

Supports Data Report Generated

Weight:

Approximately 3 Kg

Enclosure Protection Class:

IP66

Packaging Details:

38*33*18cm 4.5kg

Supply Ability:

100 Units Per Month

Highlight:

TDLAS Combustible Gas Leak Detector

Methane Combustible Gas Leak Detector

TDLAS handheld combustible gas detector

Product Description

PPB Level G20 Portable TDLAS Laser Natural Gas Combustible Methane Ethane Leak Detector

Description:

The G20 portable laser natural gas leak detector can detect and separate Ethane content in natural gas samples, even with concentrations of Ethane as low as 0.5 PPB, offering quick and accurate indications in the field.With advanced mid-infrared laser absorption spectroscopy technology perfectly combines high performance with portability in one device.

G20 Portable laser gas detector is capable of analyzing methane,ethane and water vapor in inhaled air,enablng rapid and accurate detection of potential gas leaks.

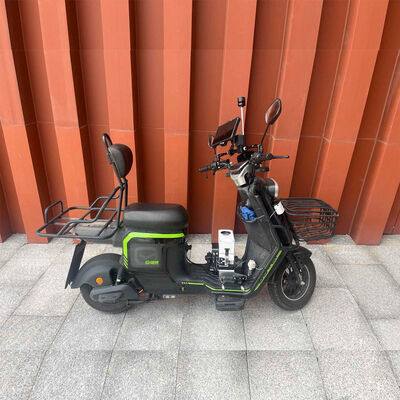

G20 portable laser gas detector can be mounted on small,slow moving vehicles such as electric bicycles when used with V-Dock,serving as an effective supplement to the A20 system. This allows for leak inspections in areas like residental communities and countryards pipelines, covering the last mile of distribution networks.

G20 portable Laser gas detector can detect both methane&ethane,and output the accurate concentration value in a shorter detection time.Meanwhile, you can refer to the detected methane concentration, and identify whether the leakage is from the natural gas according to the gas proportion.

Model	G20	Detection Subject	Ethane(C2H6)\| Methane(CH4)
Measuring Principle	Laser Absorption Spectrum	Display Mode	Direct value display (ppm)
Resolution	1 ppb(Methane) 0.5 ppb (Ethane)	Explosion-Proof Grade	ATEX Exib IIC T4 Gb
Response Time	1 s	Operating Temperature	-20 ~ 50 ºC
Concentration Range	0~10,000ppm(Methane) 1000ppm(Ethane)	Operating Humidity	< 98%RH, no condensation
Enclosure Protection Class	IP66	Main Unit Dimension	246 x 98 x 164 mm
Power supply and Endurance	Lithium battery >8h	Main Unit Weight	3 kg
Accessories	Strap, hand-held probe	Data Connection	Bluetooth,ADA Software

Key features and benefits:
High Sensitivity:
TDLAS-based detectors can achieve ppb-level sensitivity, allowing for the detection of even small leaks.
Specificity:
They can differentiate between ethane and methane, enabling accurate leak identification.
Real-time Monitoring:
TDLAS allows for real-time measurements, providing immediate feedback on ethane levels.
Versatility:
They can be used in various applications, including leak detection in pipelines, industrial facilities, and even in breath analysis.
High Accuracy:
Combined with the false alarm filtering algorithm based on AI spatiotemporal model, it can greatly reduce the false alarm rates and imporve the correlation between alarms and legitimate leak locations.

Easy assembly:

The main unit and the docking station are connected snap-fasteners, allowing for easy assembly and separation. This design balances the needs of vehicle mounted inspections and portable detection.

Examples of applications:
Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring ethane emissions from various sources, including landfills and agricultural activities.
